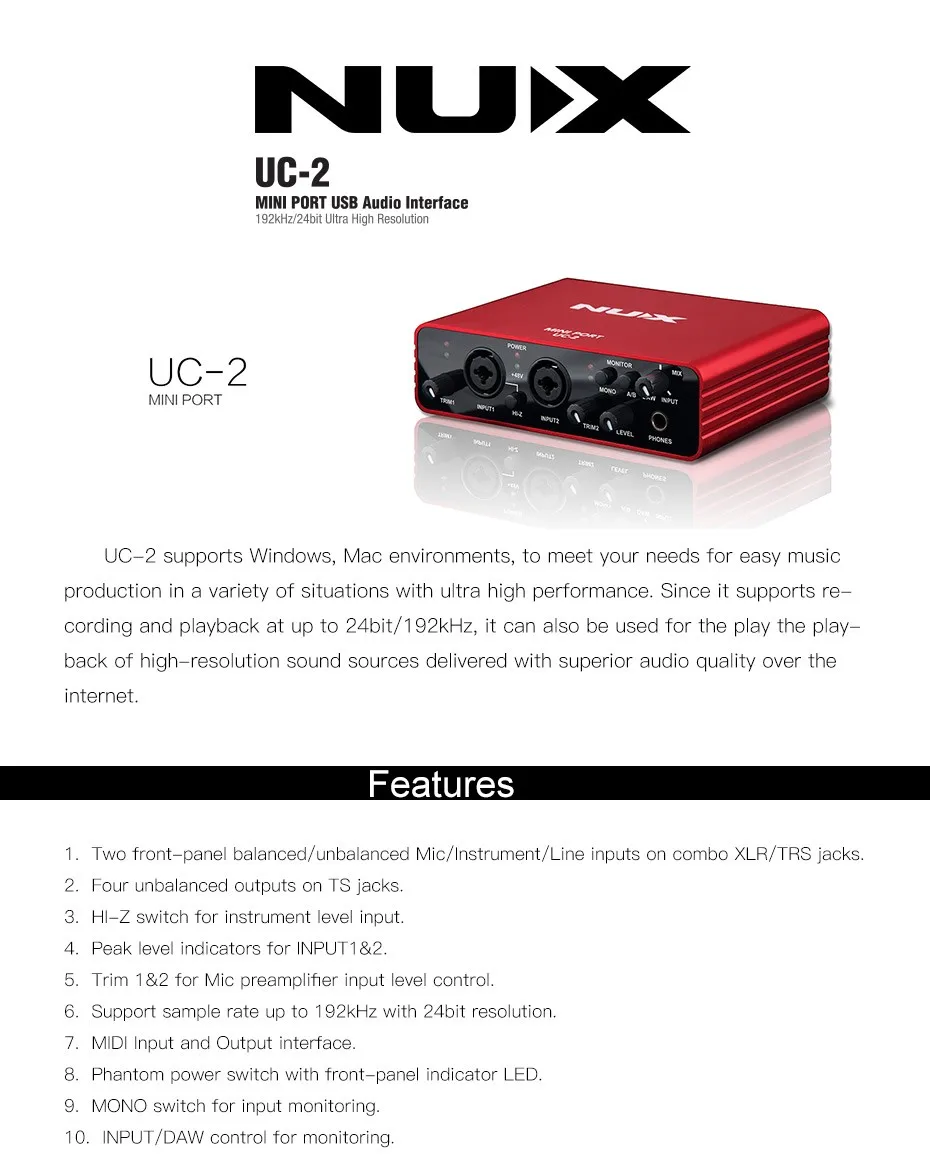

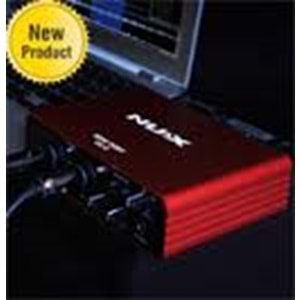

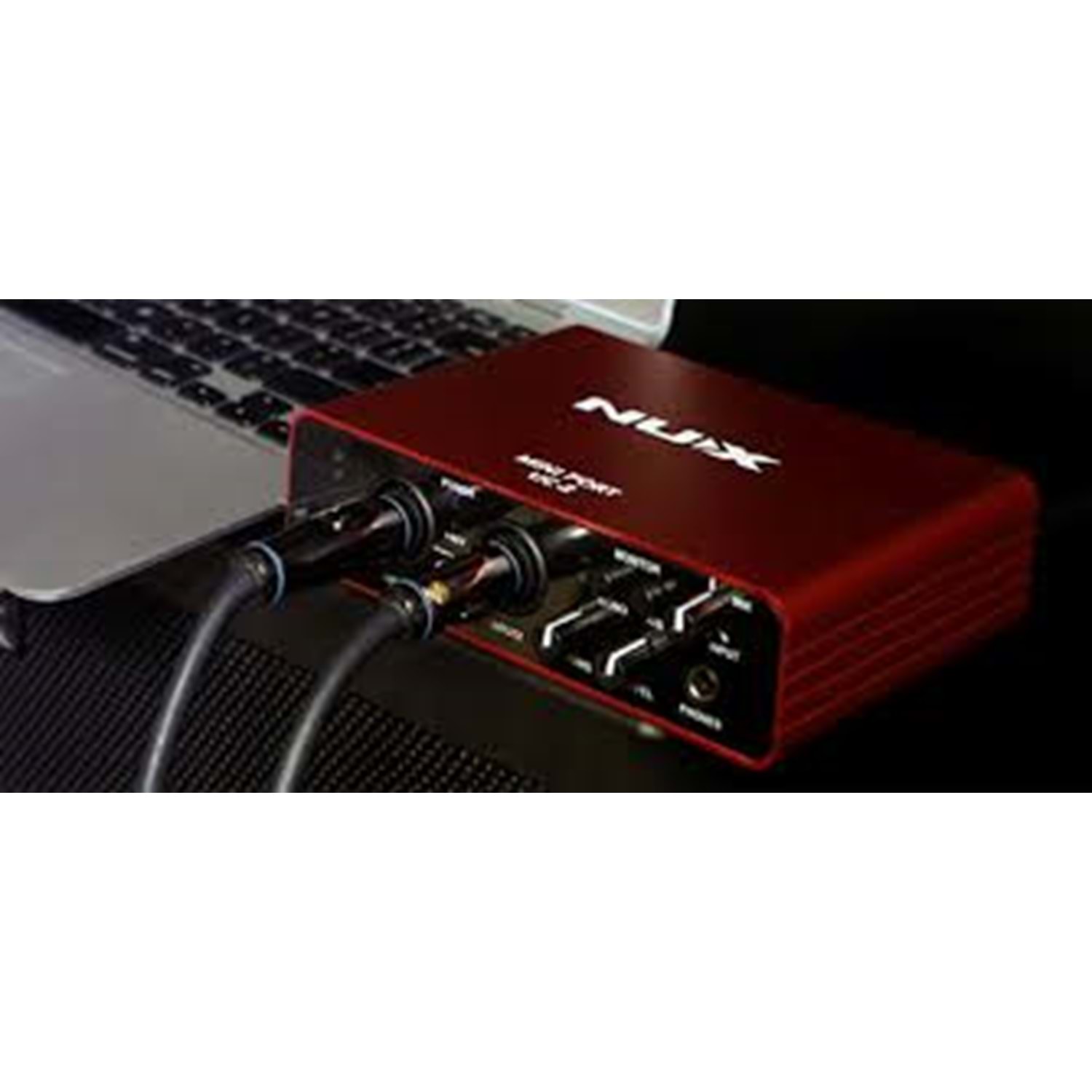

• Compact and convenient USB audio interface


• Combo jacks with Hi-Z swith for mic and high impedance input


• Stereo headphones output 192KHz/24bit ultra high resolution


• Low latency ASIO (Windows) and Core Audio (Mac) drivers MIDI in and out.

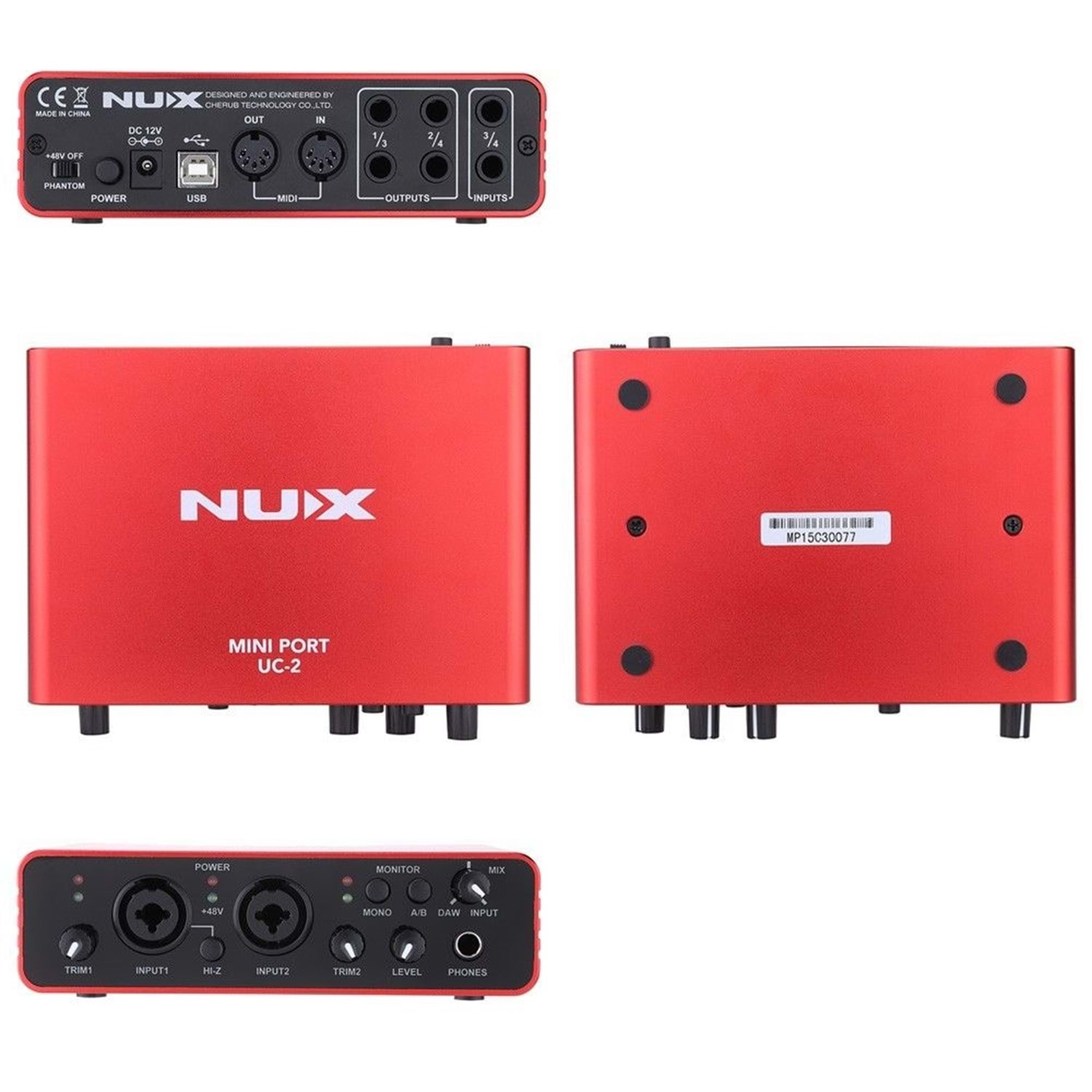

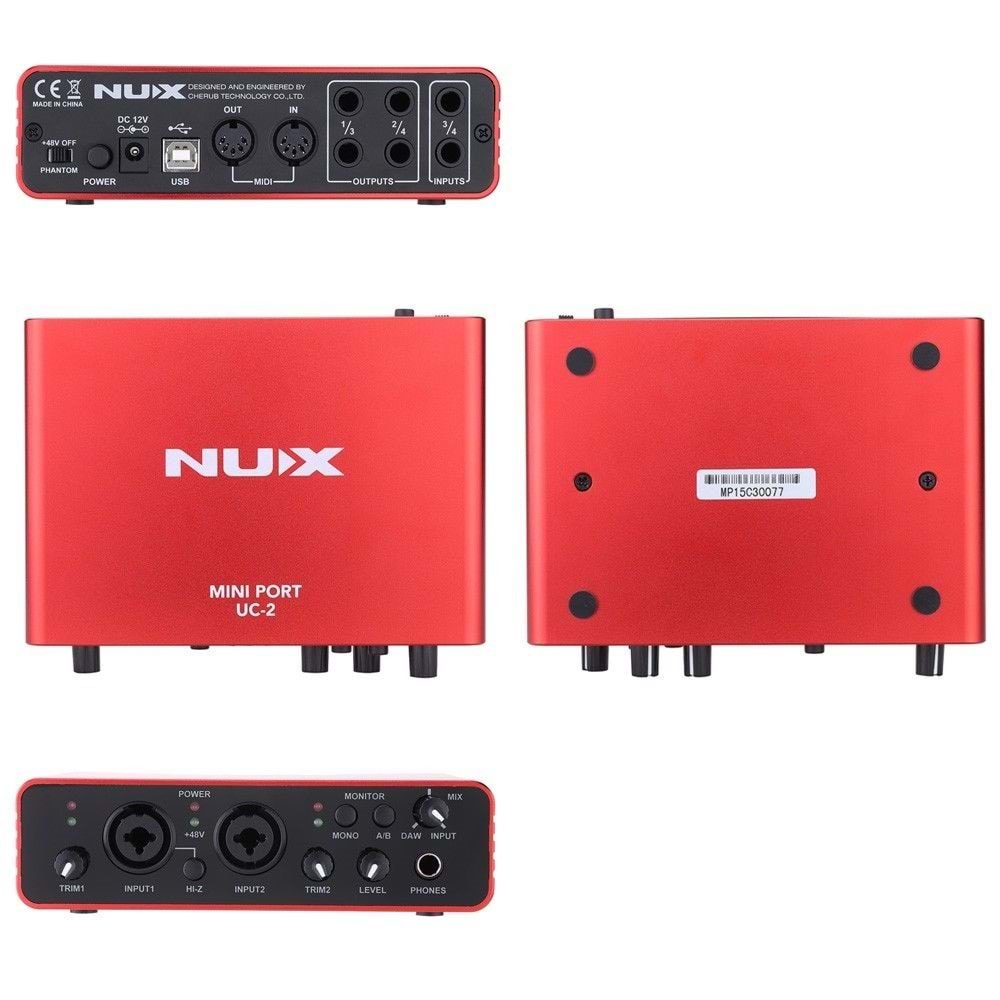

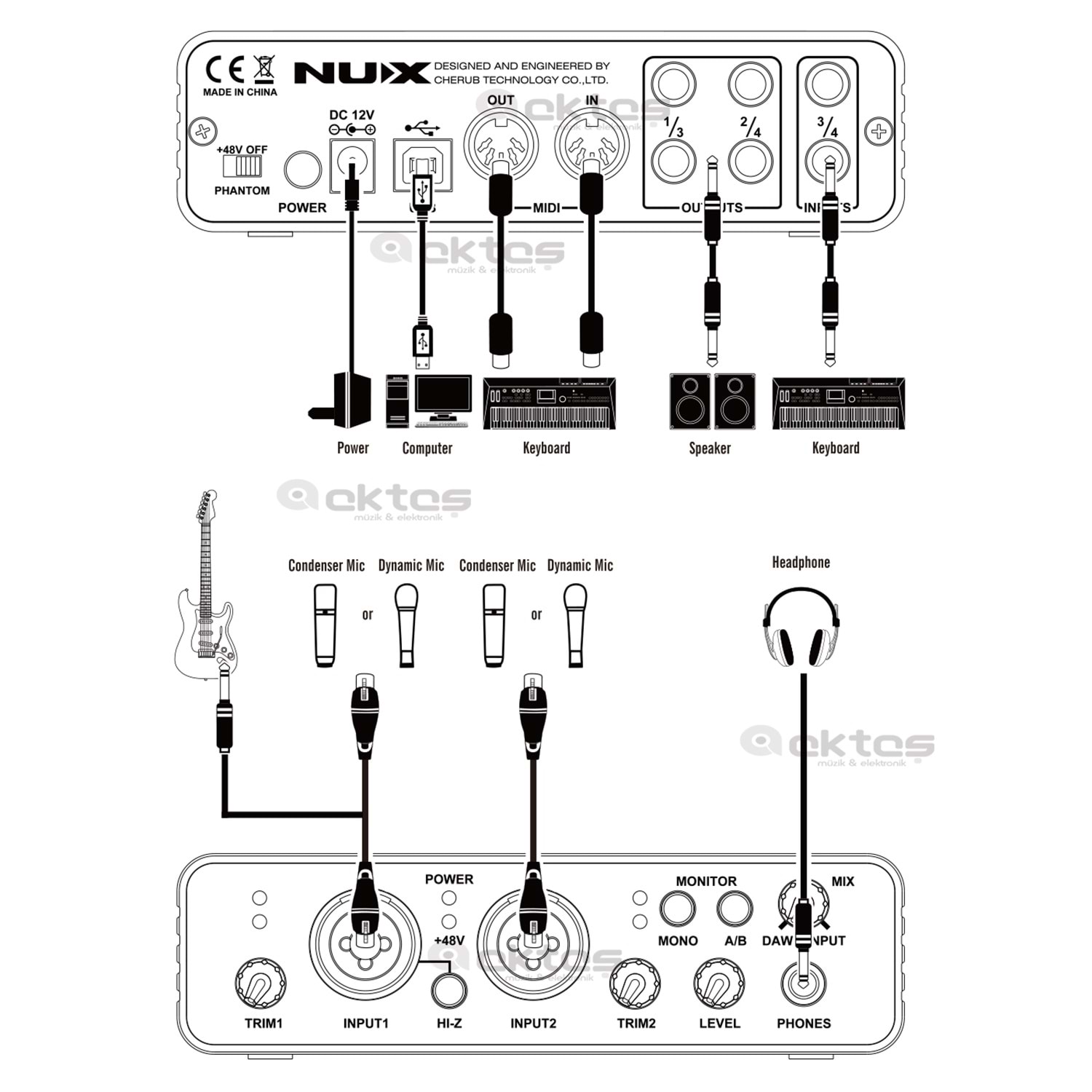

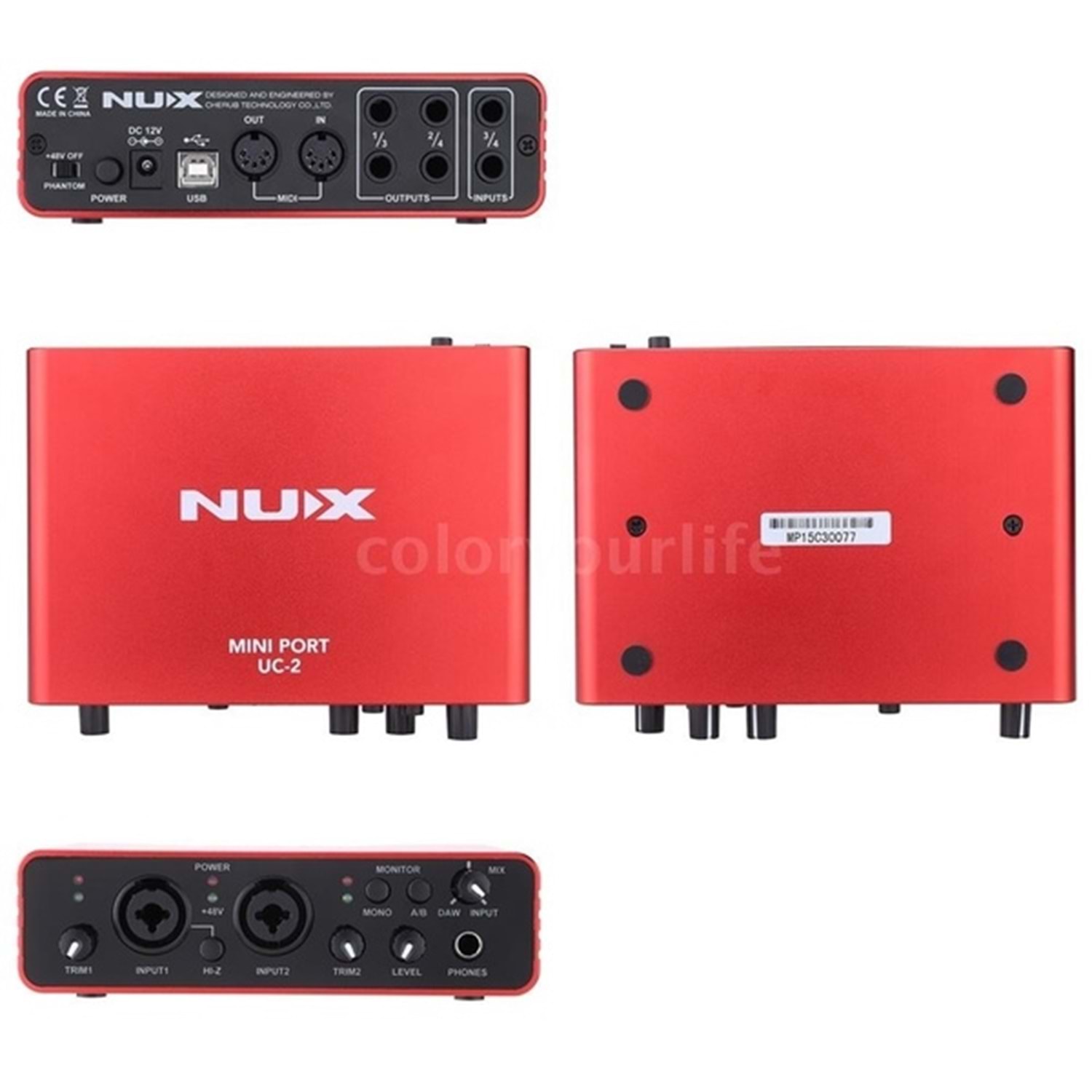

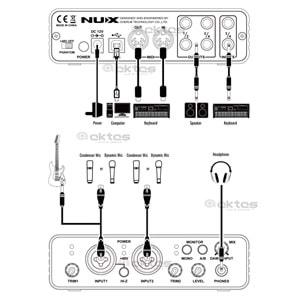

Two XLR & 6.35mm TRS inputs for balance & unbalanced mic, instrument and equipment with stereo outputs.
Four 6.35mm TS unbalanced outputs.
One MIDI input and output.
One 6.35mm phone jack for headphones.
HI-Z switch for "input1" to connect high impedance instruments.
Signal level indicators for "input1" & "input2".
"Trim1" & "Trim2" to adjust the input signal level.
"Mono" button allows "input1" & "input2" to be used as mono channel or a stereo pair.
"A/B" monitor button to select the signal source sent to the "level" knob:
In "A" position, input "input1" & "input2" are sent to the main out;
In "B" position, input "input3" & "input4" are sent to the main out.
"Level" knob: Adjust the signal level sent to the main out jacks.
"Mix" control: Adjust the audio mix received from "Daw" and "Input" signal.
Phantom power switch: sending 48V power to the front-panel XLR input for using with condenser mic.

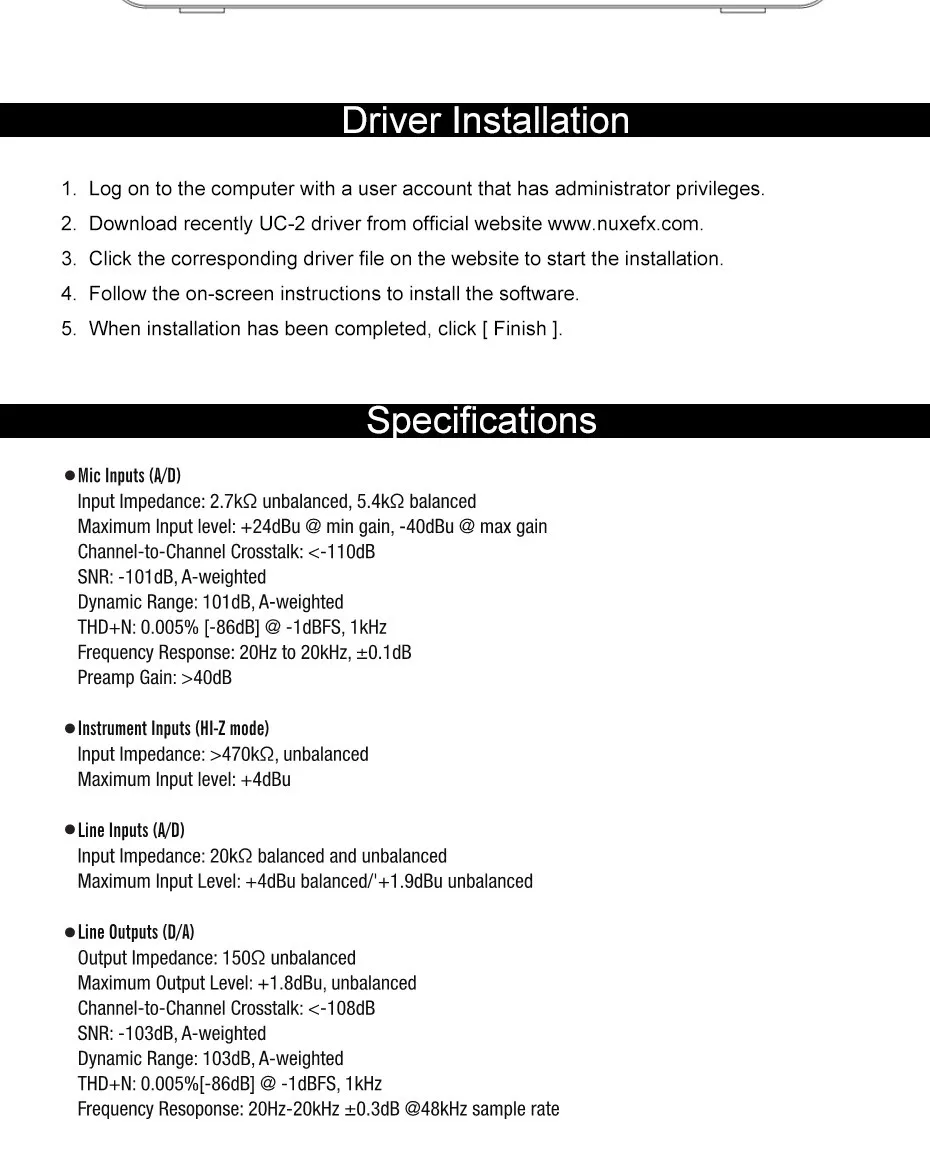

Support recording and playback at up to 24bit/192kHz.
Support for Windows, for Mac system computers.
