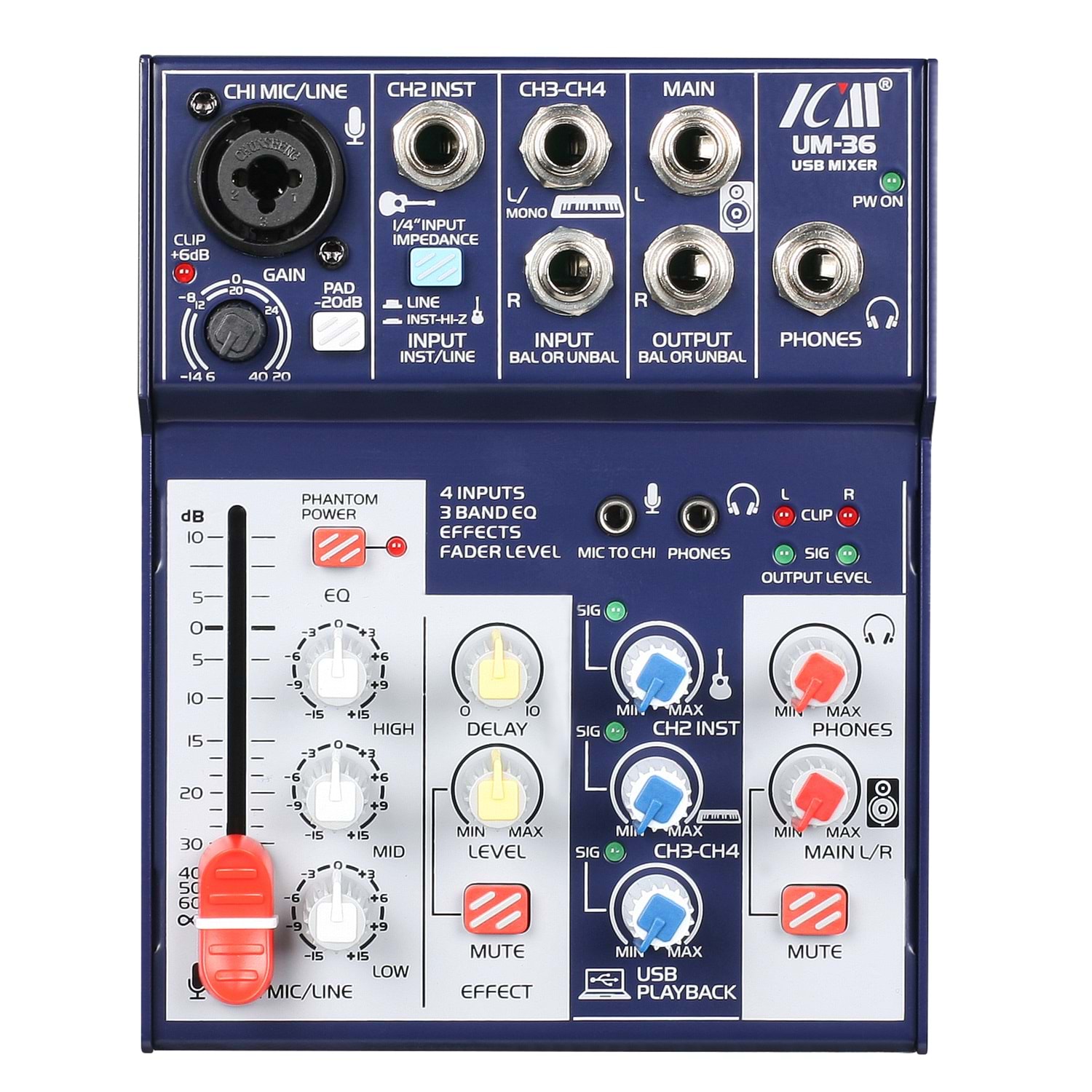

UM-36 4-channel USB powered mixer and interface. Balanced microphone input has phantom power, input gain control, 60mm fader, 3-way EQ and digital echo.

Inputs :

Channel 1

• Combo balanced 3-pin XLR microphone and 6.35mm jack line input


• 3.5mm jack input with plug-in-power for headset microphone


• Input gain control


• -20dB pad


• Fader level control


• LED clip indicator


• Phantom power on/off switch


• 3 way EQ (80Hz, 2.5KHz, 12KHz, +/- 15dB)


• Digital echo effect with delay control, level control and mute switch

Channel 2

• 6.35mm jack line input


• High-impedance switch for guitar


• Level control


• LED signal indicator

Channel 3/4

• 2 x 6.35mm balanced/unbalanced jack line inputs


• Level control


• LED signal indicator

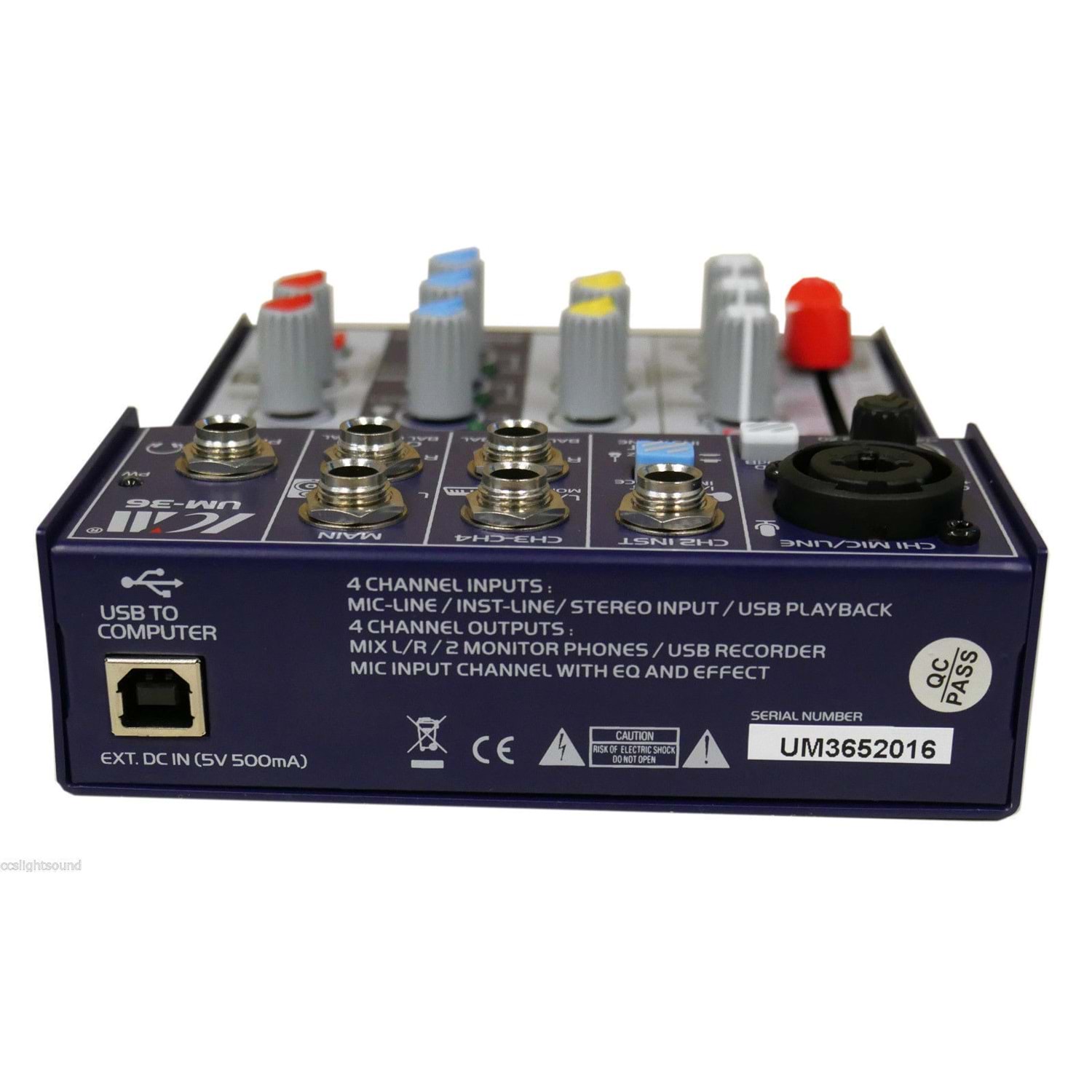

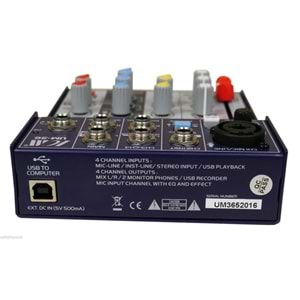

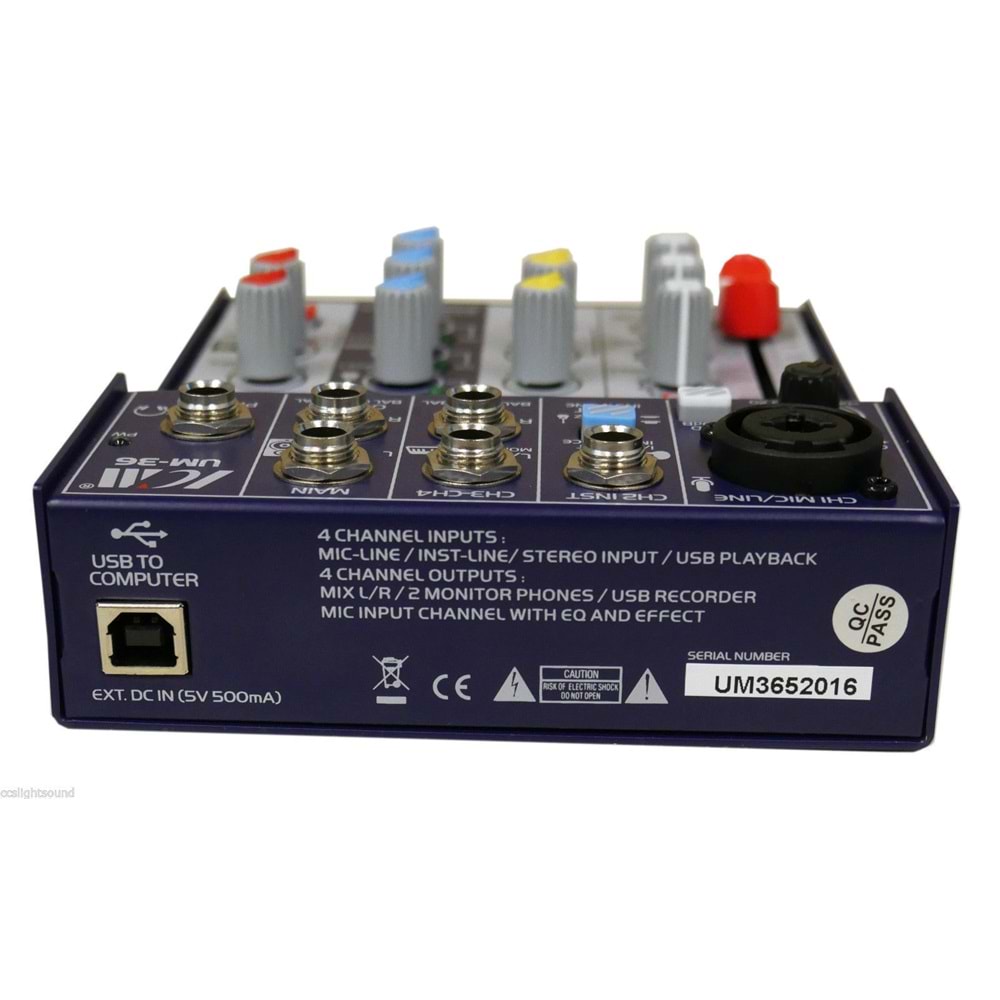

Outputs:

• Balanced/Unbalanced 6.35mm main left and right outputs with mute switch and LED signal and clip indicators


• Stereo 6.35mm jack headphone output and 3.5mm headset phones output


• USB stereo input and stereo output with USB playback control and LED signal indicator

Physical :

• Powered by USB (USB cable supplied)


• LED power indicator


• Dimensions (WxHxD) :120mm x 33mm x 157mm


• Weight : 0.73Kg
