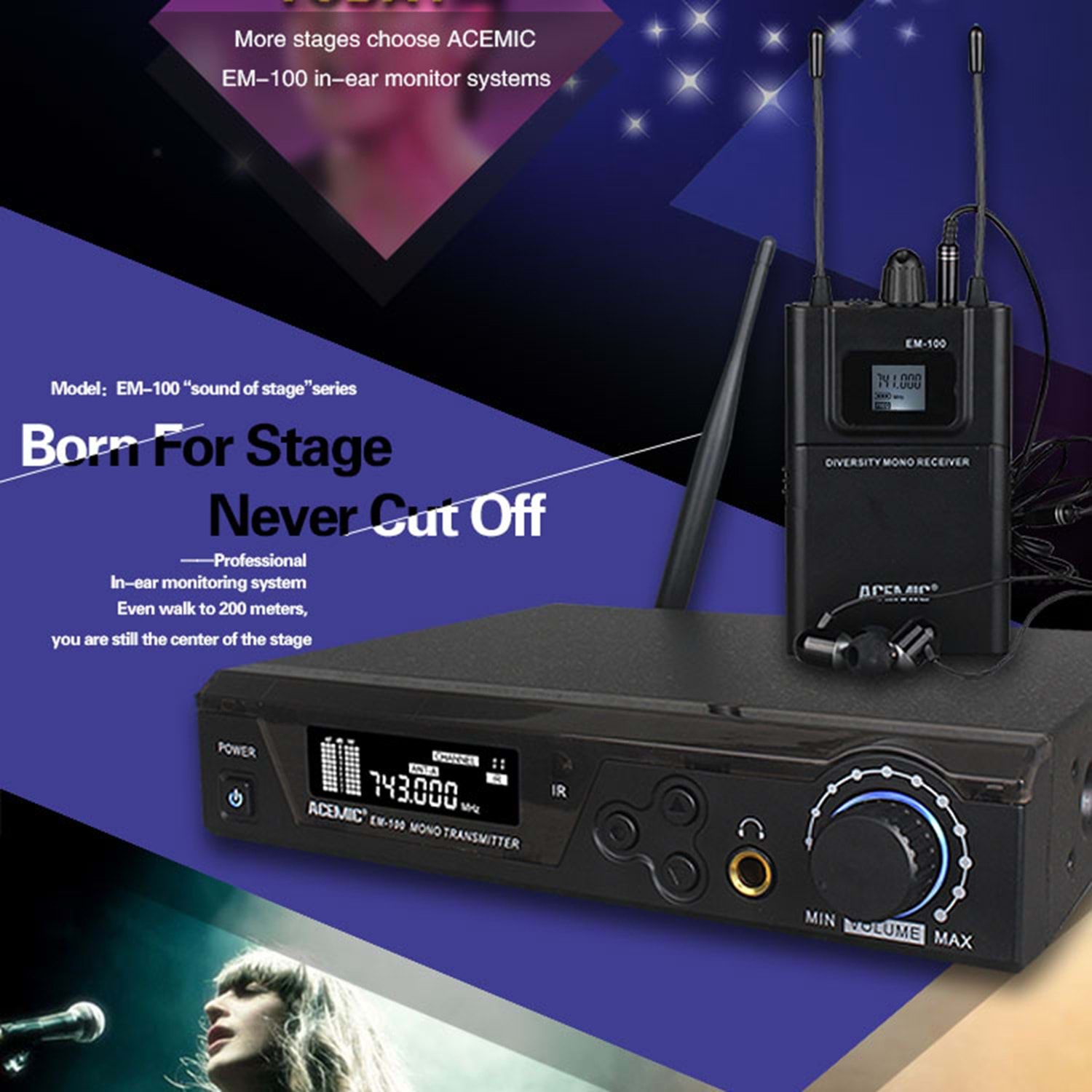

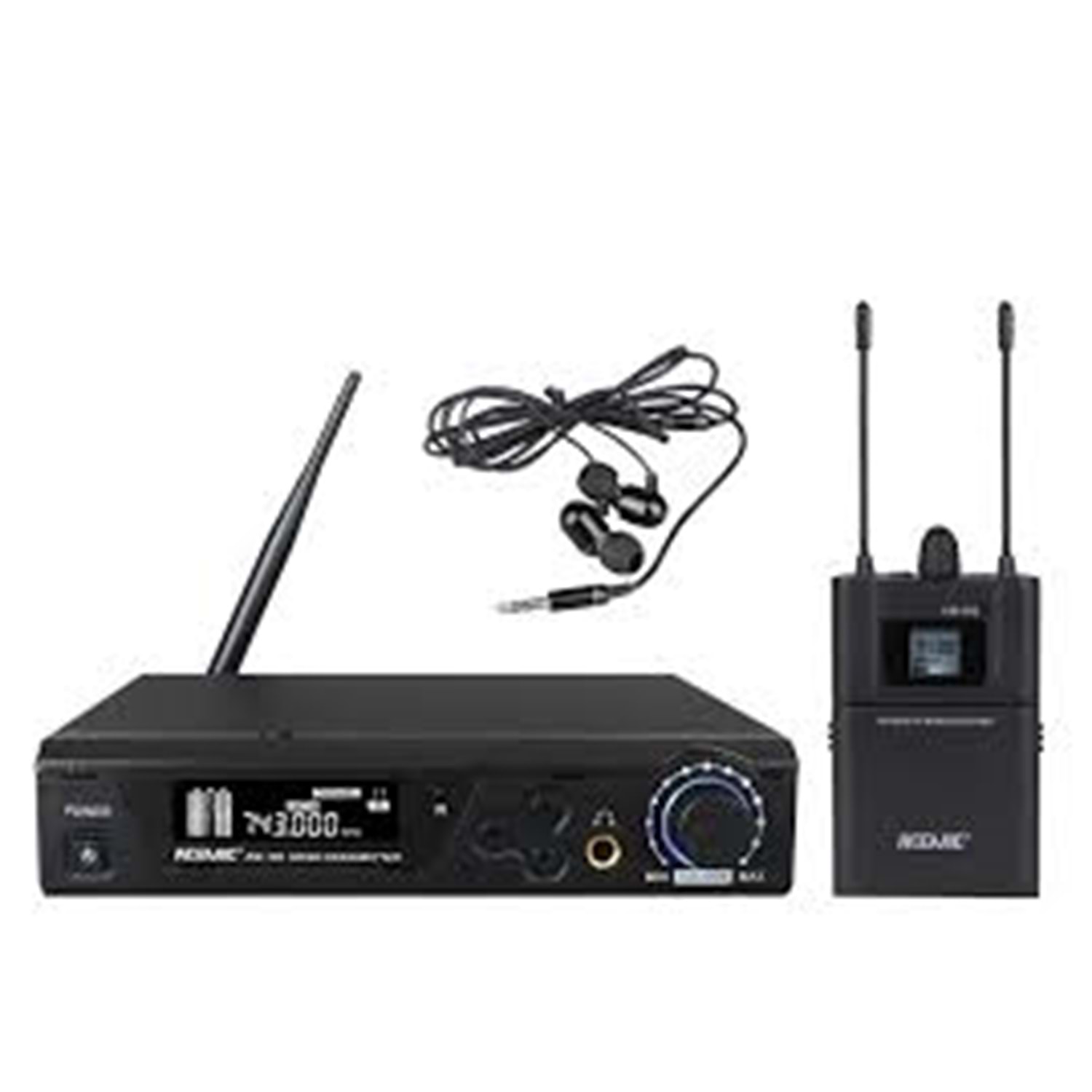

FEATURES
UHF 600-928MHz frequency range
Mono Outputs, four levels RF output selectable
True diversity for maximum range and dropout protection
PLL Synthesized circuit
Pre-set 100(10*10) selectable frequencies
IR sync downloading the frequency from receiver
LCD display shows the RF level, AF level, channel and frequency.
EIA standard 1/2U rack-mountable metal chassis
Up to 200m line-of-sight operating range
Designed for professional stage performance applications

SPECIFICATION
Receiver(Belt-pack)
Frequency Range: 600-928MHz
Transmission Method: FM, Mono
Frequency Response: 60Hz-17KHz
Total Harmonic Distortion: <0.7% at 1KHz
Signal/Noise Ratio: ?105dB
Earphone output: 3.5mm?/ 16ohms 105mW
Receiving Sensitivity: 10dBuV(80dB S/N)
Battery Voltage: 3V (2x1.5V AA Battery)
Power Consumption: 8 hours, battery-dependent

Transmitter
Frequency Range:740-765MHz
Transmission Method: FM, Mono
Transmitter Power: 5/10/30/100mW
Frequency Response: 50Hz-17KHz
Total Harmonic Distortion: <0.5% at 1KHz
Deviation: 45KHz
Input impedance: 32ohms
Power Supply: DC12V-18V / 500mA
Uyumlu Marka ve Modeller
Acemic>>EM-100
