FEATURES
UHF 740-790MHz frequency range
True Diversity for maximum range and dropout protection
PLL Synthesized, pre-set 100 selectable frequencies
IR sync downloading the frequency from receiver
LCD display shows the RF level, AF level, channel and frequency

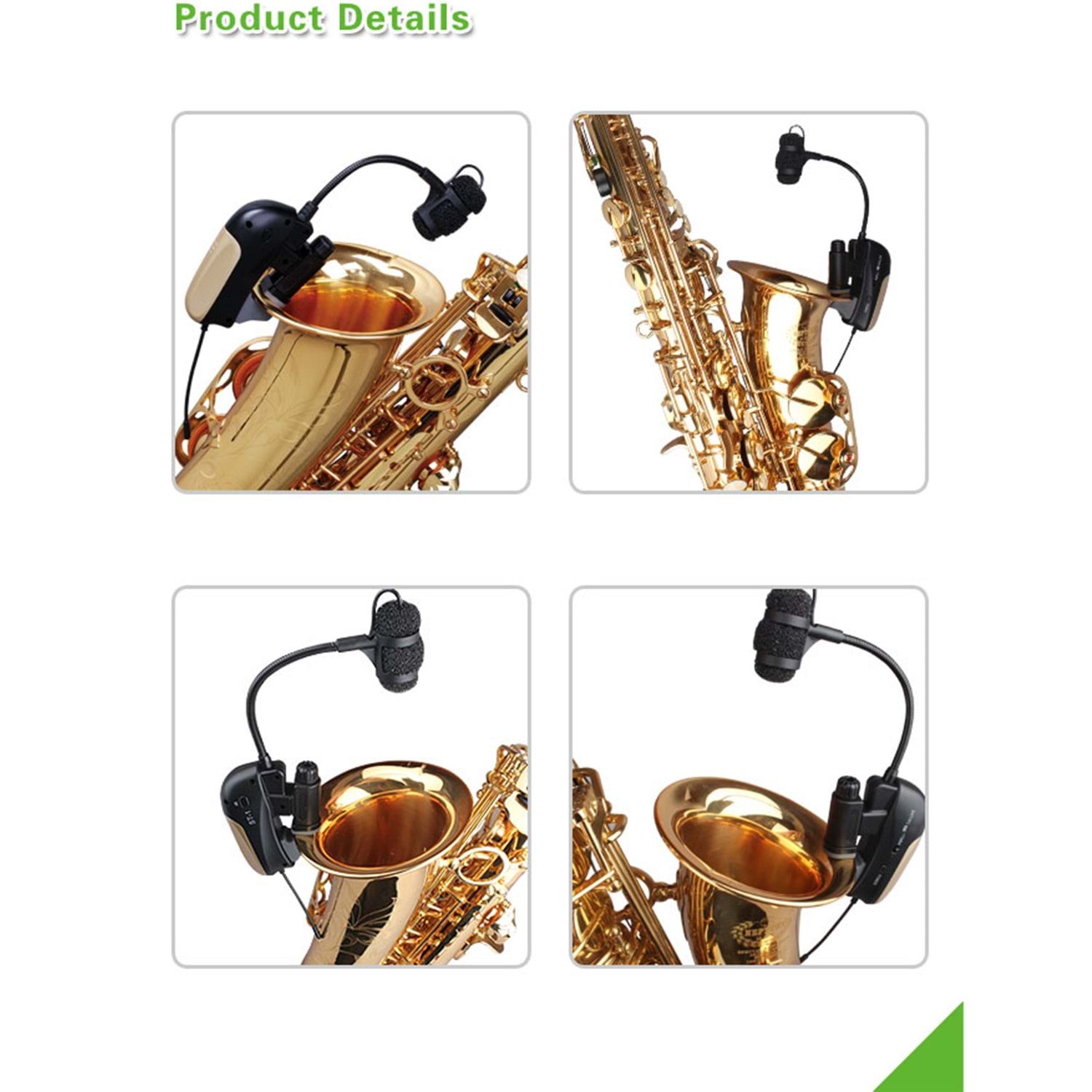

Patented design, rubber cover protect the wind instrument
EIA standard 1/2U rack-mountable metal chassis
Up to 300 feet (100m) line-of-sight operating range

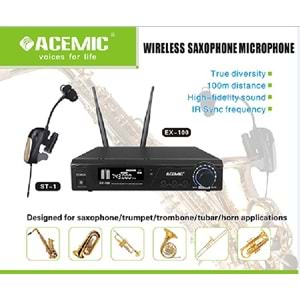

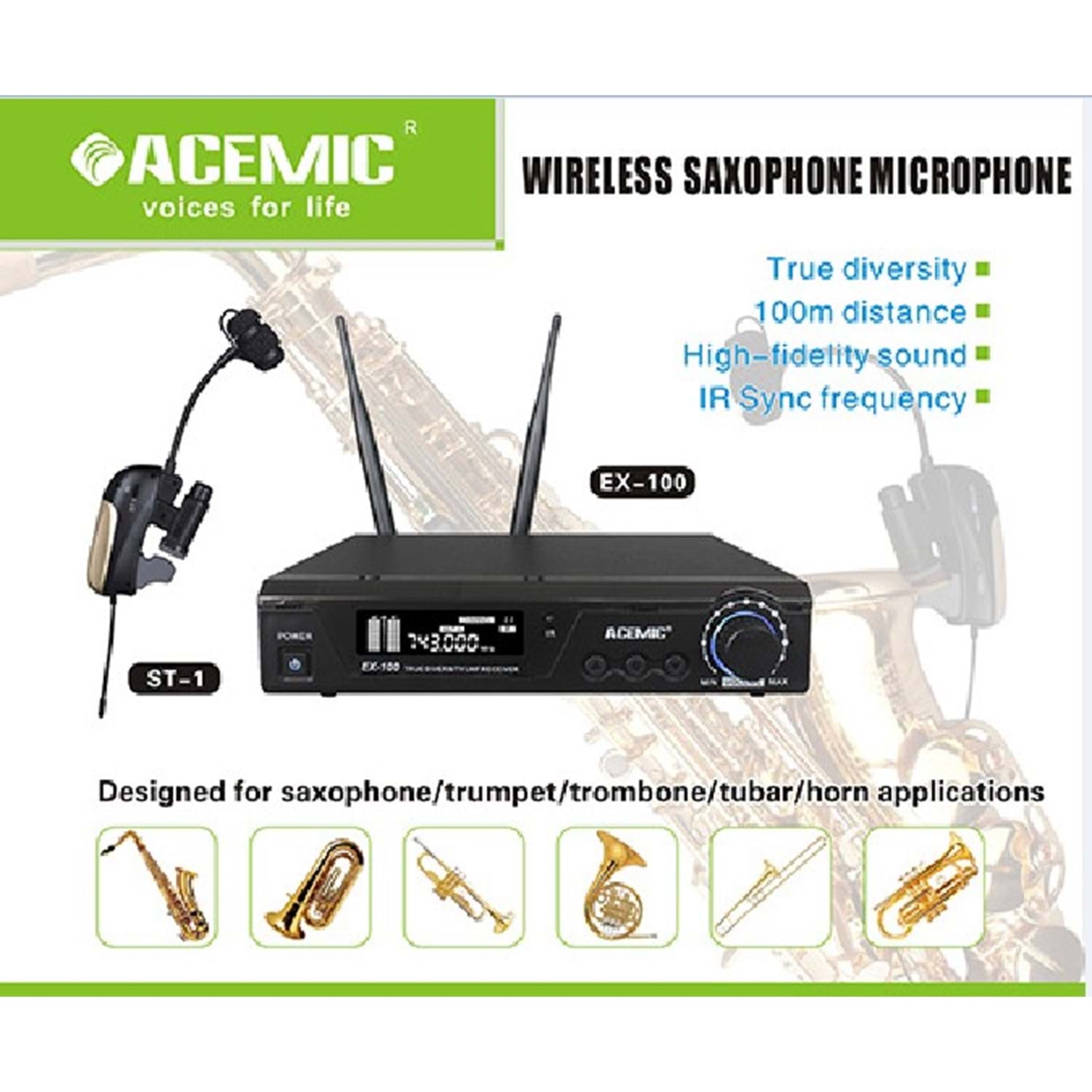

Designed for saxophone, trumpet, trombone, tubar, horn applications

SPECIFICATION
Comprehensive Performance
Frequency Range: 600-952MHz
Modulation Mode: FM
Dynamic Range: >100dB
Frequency Response: 40Hz-17KHz±3dB
Total Harmonic Distortion: <0.5% at 1KHz
Signal/Noise Ratio: ?108dB

Receiver
Frequency Range: 600-952MHz
Receive Sensitivity: -110dBm (sinad ?30dB)
Signal/Noise Ratio: >108dB
Power Supply: DC12V-18V / 500mA
Audio Output: 1*XLR socket, 1*6.35mm jack socket

Transmitter
Frequency Range: 600-952MHz
RF Power: 10mW
Microphone Type: Condenser
Directivity:Cardioid
Deviation: ±48KHz
Antenna: 1/4 wave Length wire type
Battery Voltage: 1.5V (1x1.5V AA Battery)
Power Consumption: 10 hours, battery-dependent
