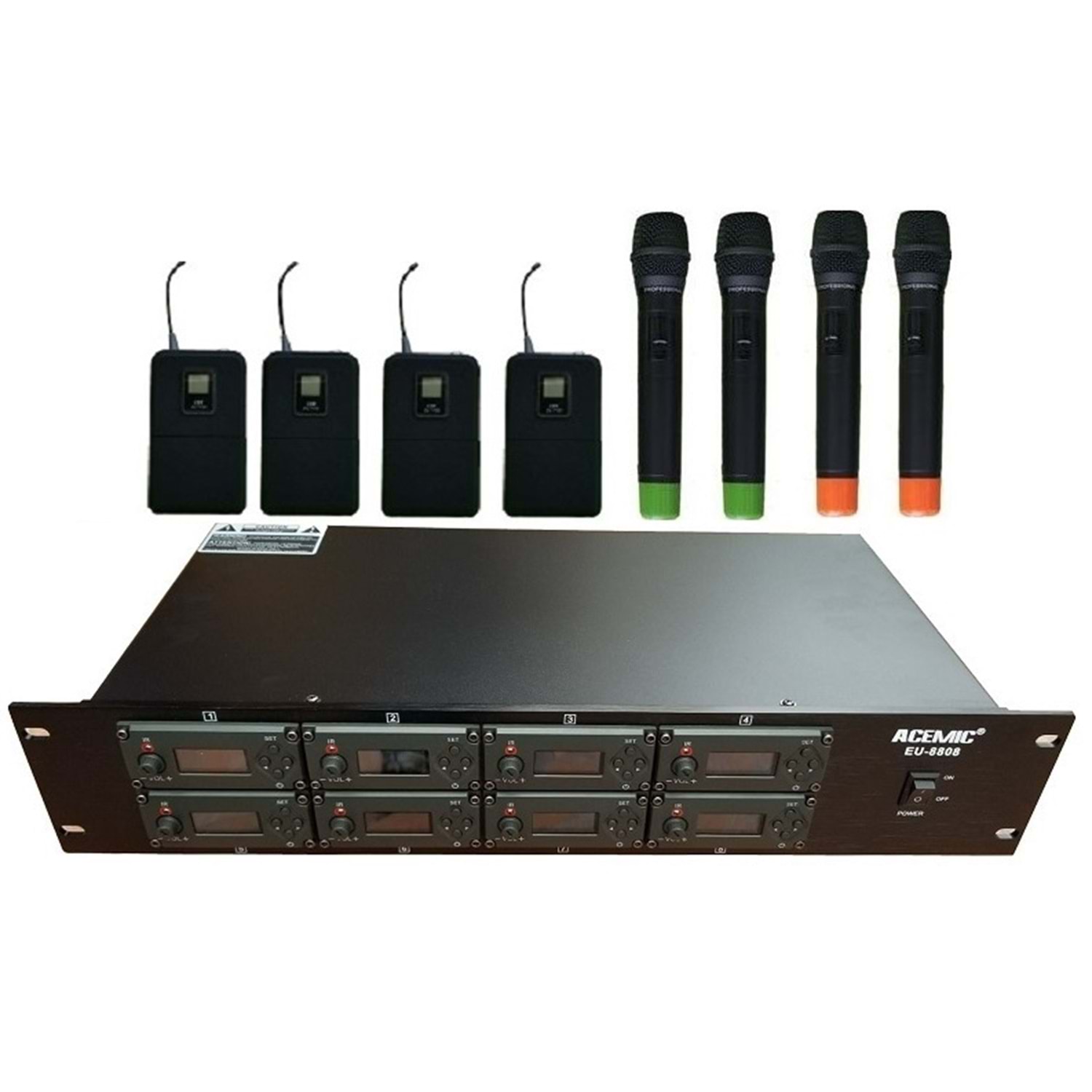

FEATURES CONREFANCE SYSTEM 8
UHF 740-790MHz frequency range
PLL Synthesized circuit
Four channels; Pre-set 100*4 selectable frequencies
Adopt individual module, each one can be turned off and removed
Download the frequency from receiver by IR Sync
LCD status of frequency, AF and RF signal etc
EIA standard 1U rack-mountable metal chassis
Ideal for small conference rooms
Optional hand-held microphone, pocket transmitter, lavalier and headset available

SPECIFICATION
Comprehensive Performance
Carrier Frequency: UH600-900MHz
Frequency Stabilization: <±30ppm
Dynamic Range: >100dB
Total Harmonic Distortion: <0.8%
Frequency Response: 40Hz~15KHz±3dB
Audio Output Level: Balance 400mV
Unbalance: 300mV

Receiver
Power Supply: DC 12V-17V
Consume Power: 1 WATT
Signal/Noise Ratio: >105dB
Image &Spurious Rejection: >80dB
Border Upon Channel Rejection: >80dB
Receiving Sensitivity: 5dBuV (sinad>20dB)
De-Emphasis: 50uS

Transmitter
Transmitter Power: 10~30mW
Modulation Type: FM
Deviation: 20KHz
Spurious Emission: >40dB
Battery Voltage: 3V (2x1.5V AA Battery)
Continuous Using: 5 hours
Uyumlu Marka ve Modeller
Acemic>>EU-8808
