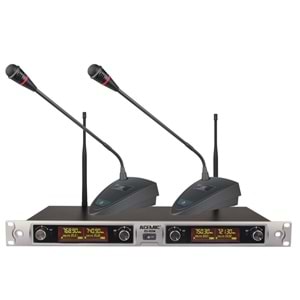

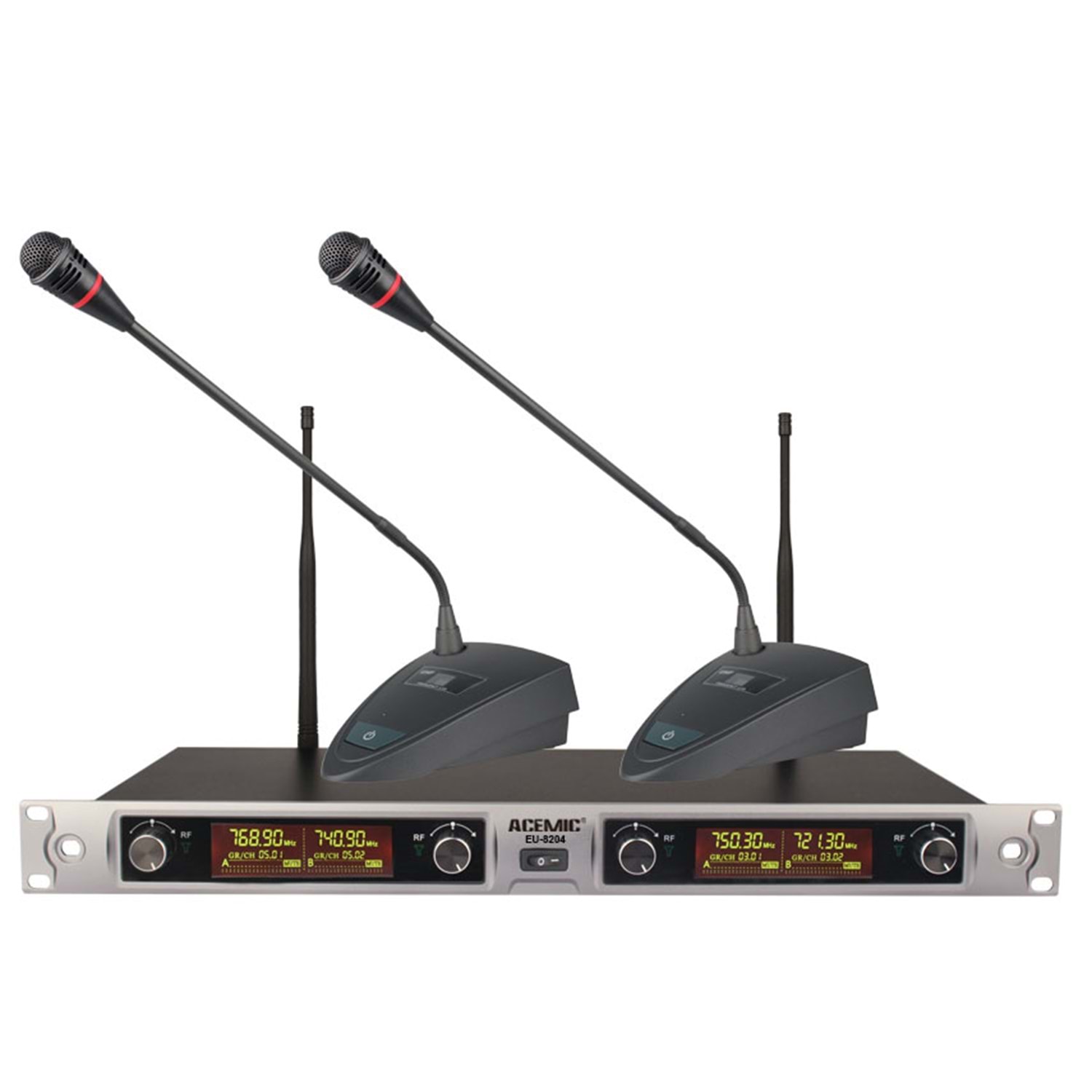

EU-8204

Conference Microphone System


FEATURES
UHF 600-900MHz frequency range
PLL Synthesized circuit
Four channels fixed frequency.
LCD status of frequency, AF and RF signal etc

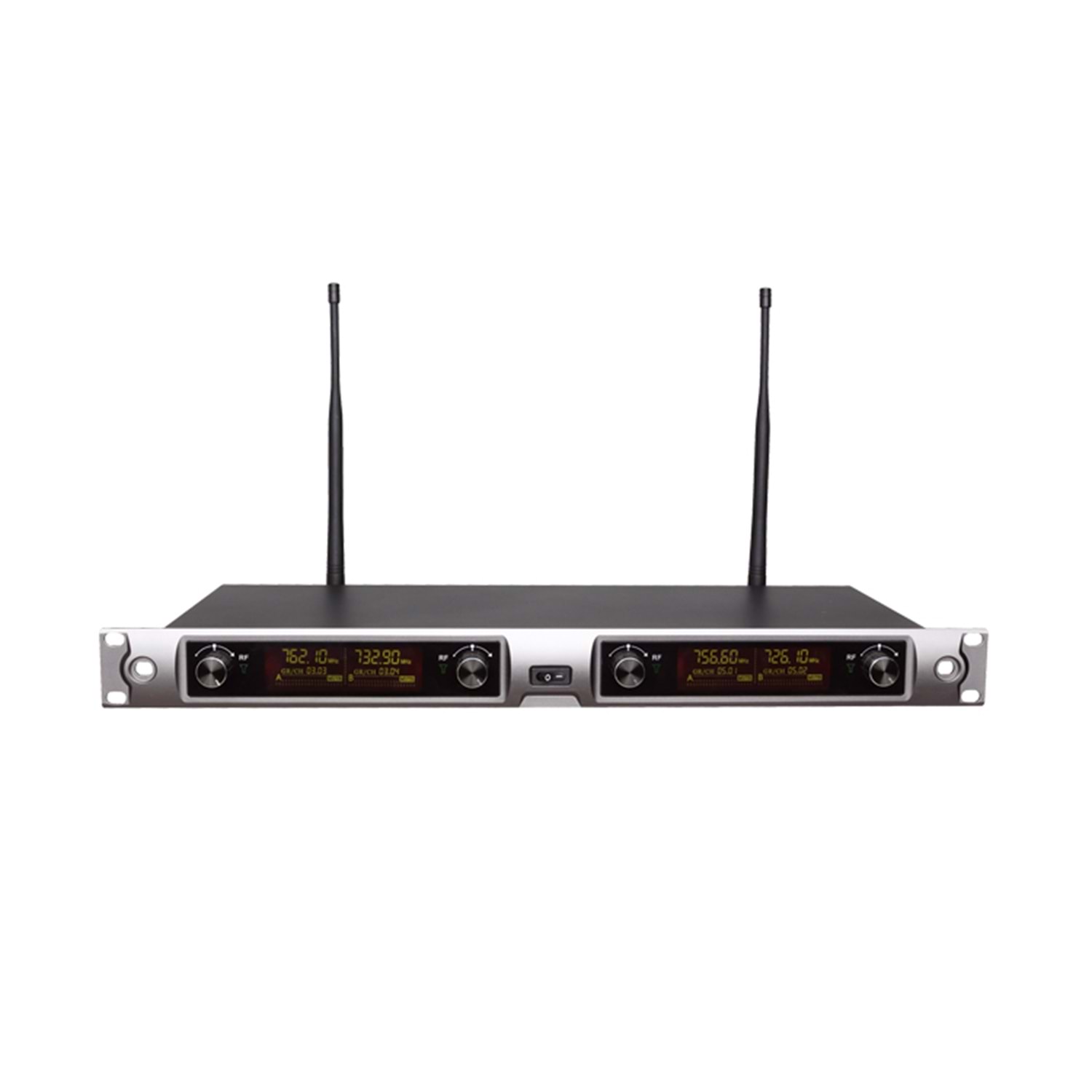

EIA standard 1U rack-mountable metal chassis
Ideal for small conference rooms

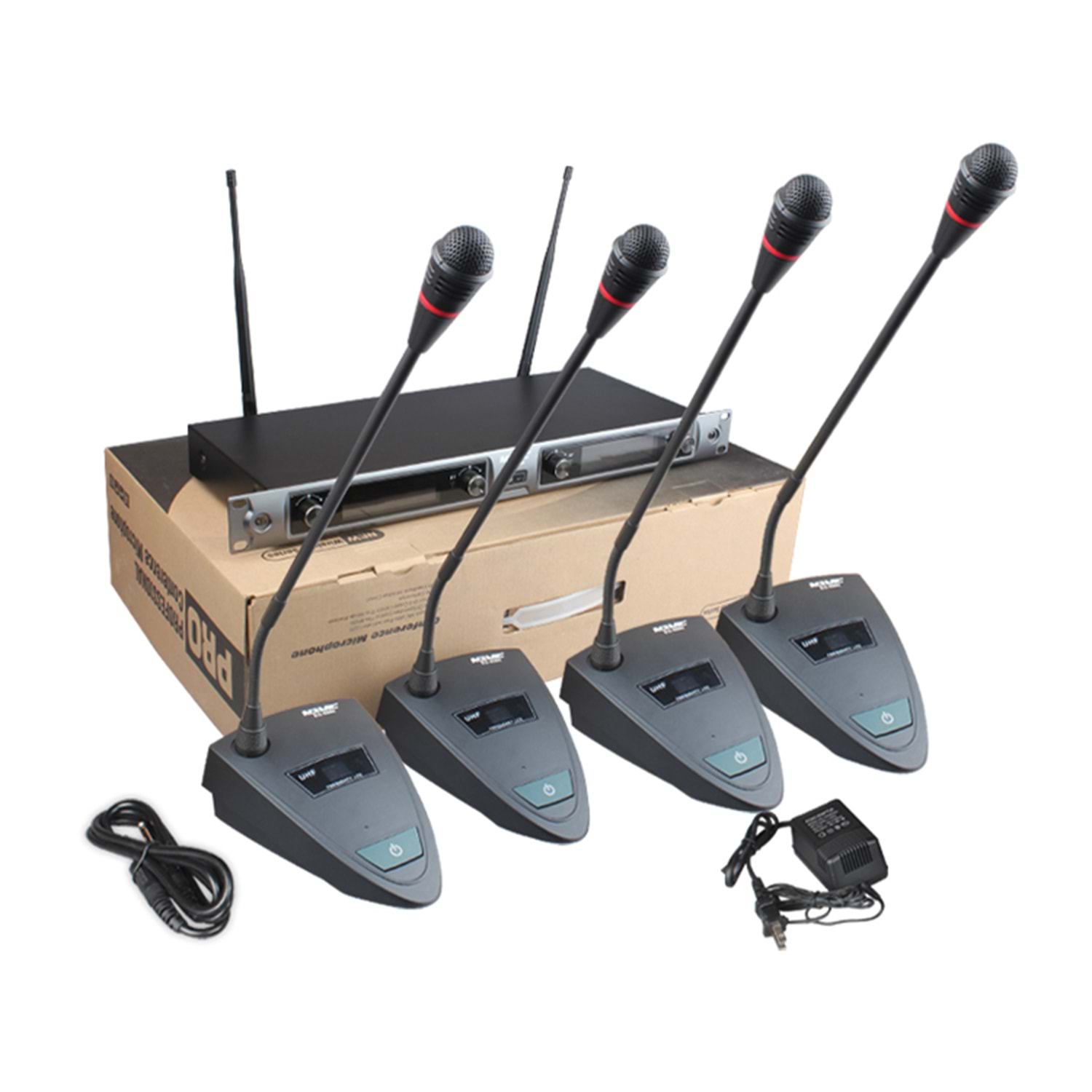

Optional hand-held microphone, pocket transmitter, lavalier and headset available


SPECIFICATION
Comprehensive Performance
Carrier Frequency: UHF 600-900MHz
Frequency Stabilization: <±30ppm
Dynamic Range: >100dB
Total Harmonic Distortion: <0.8%
Frequency Response: 40Hz~15KHz±3dB

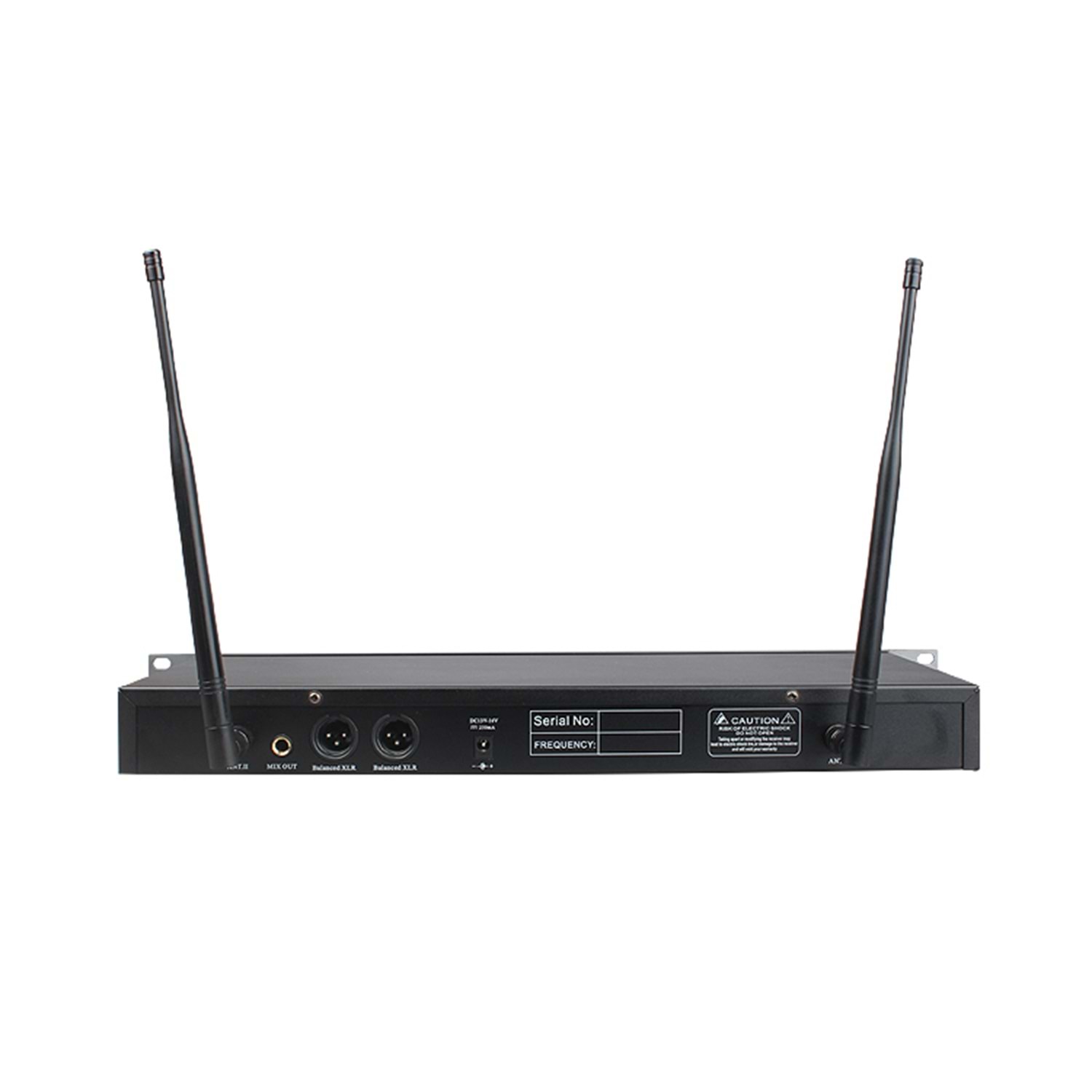

Audio Output Level: Balance 400mV
Unbalance: 300mV



Receiver

Power Supply: DC 15V-17V
Consume Power: 1 WATT
Signal/Noise Ratio: >105dB
Image &Spurious Rejection: >80dB
Border Upon Channel Rejection: >80dB
Receiving Sensitivity: 5dBuV (sinad>20dB)
De-Emphasis: 50uS


Transmitter

Transmitter Power: 10~30mW
Modulation Type: FM
Deviation: 20KHz
Spurious Emission: >40dB
Battery Voltage: 3V (2x1.5V AA Battery)
Continuous Using: 5 hours
