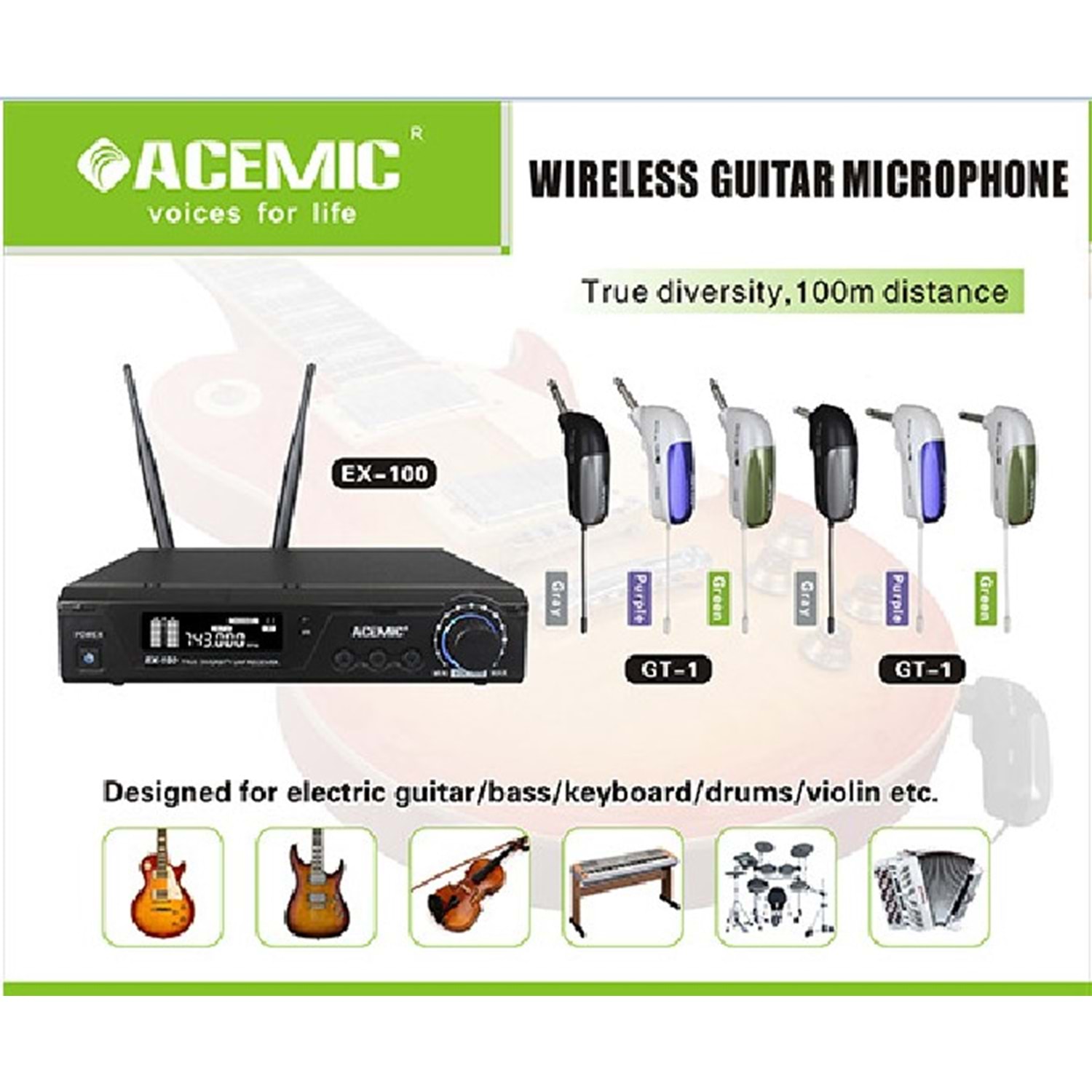

FEATURES
UHF740-790frequency range( region dependant)
True diveristy for maximum range and dropout portection, 100 meters line of sight range.
Super anti-interference capability ensures 10 systems can use together without interference
High-fidelity sound quality, no loss while wireless transmission compare to the cable.
Pre-set 100 (10*10) frequency seletable, IR synchronization.
LCD display shows the group, channel, frequency and RF, AF levels.
EIA standard 1/2 rack mountable metal chassis.
No more the bodypack transmitters, plug-in transmitter design.
Transmitter power supplied by one AA 1.5V battery, battery life more than 12hours
Special designed for electric guitar, bass, keyborad, drums violin and all 6.35mm jack electric
instrument applications

SPECIFICATION
Comprehensive Performance
Frequency Range: 600-952MHz
Modulation Mode: FM
Dynamic Range: >100dB
Frequency Response: 40Hz-17KHz±3dB
Total Harmonic Distortion: <0.5% at 1KHz
Signal/Noise Ratio: ?108dB

Receiver
Frequency Range: 600-952MHz
Receive Sensitivity: -110dBm (sinad ?30dB)
Signal/Noise Ratio: >105dB
Power Supply: DC12V / 500mA
Audio Output: 1*XLR socket, 1*6.35mm jack socket

Transmitter
Frequency Range: 600-952MHz
RF Power: 10mW
Frequency Deviation: ±48KHz
Antenna: 1/4 wave Length wire type
Battery Voltage: 1.5V (1x1.5V AA Battery)
Power Consumption: 10 hours, battery-dependent
Uyumlu Marka ve Modeller
Acemic>>EX-100/GT-1
