8 Ohm JBL Compatible Replacement Diaphragm - 2412H 2412H-1 JRX 100 112 115 - SA-DR2

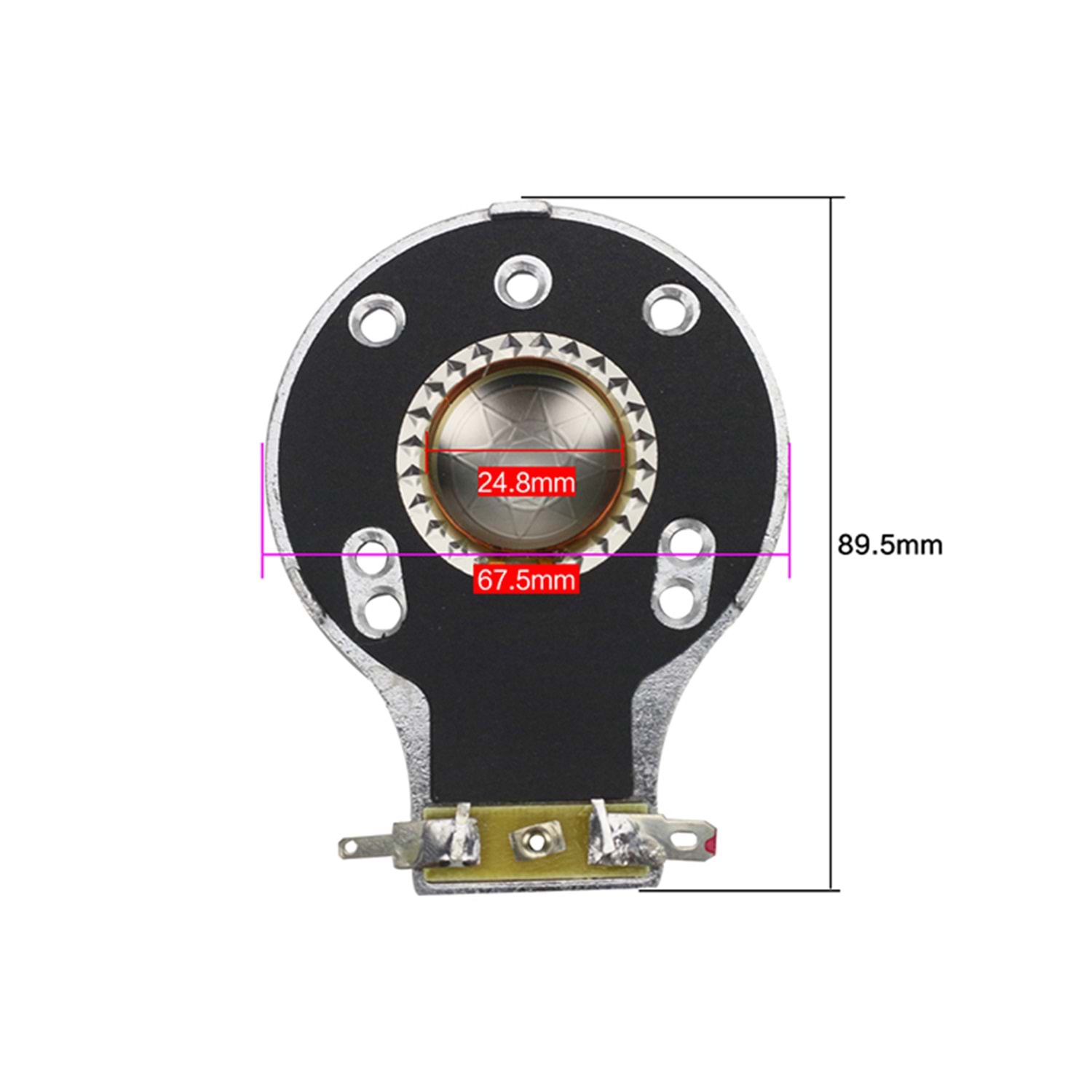

Coil diameter: 24.8 mm
Outer Diameter: 67.5mm ± 0.3
The total length of the bracket: 89.5mm ± 1
Gasket circle diameter: 64.2 mm
Bracket screw hole pitch: 37mm * 37mm * 37mm * 37mm ± 1

Sound film material: imported titanium film
Coil material: copper round wire
Nominal resistance: 8 ?
Measured resistance: 4.5 ? ± 1 (Matching original)
Rated power: Match original
Uyumlu Marka ve Modeller
D-Sound>>2412
