Neutrik NL8FC Details

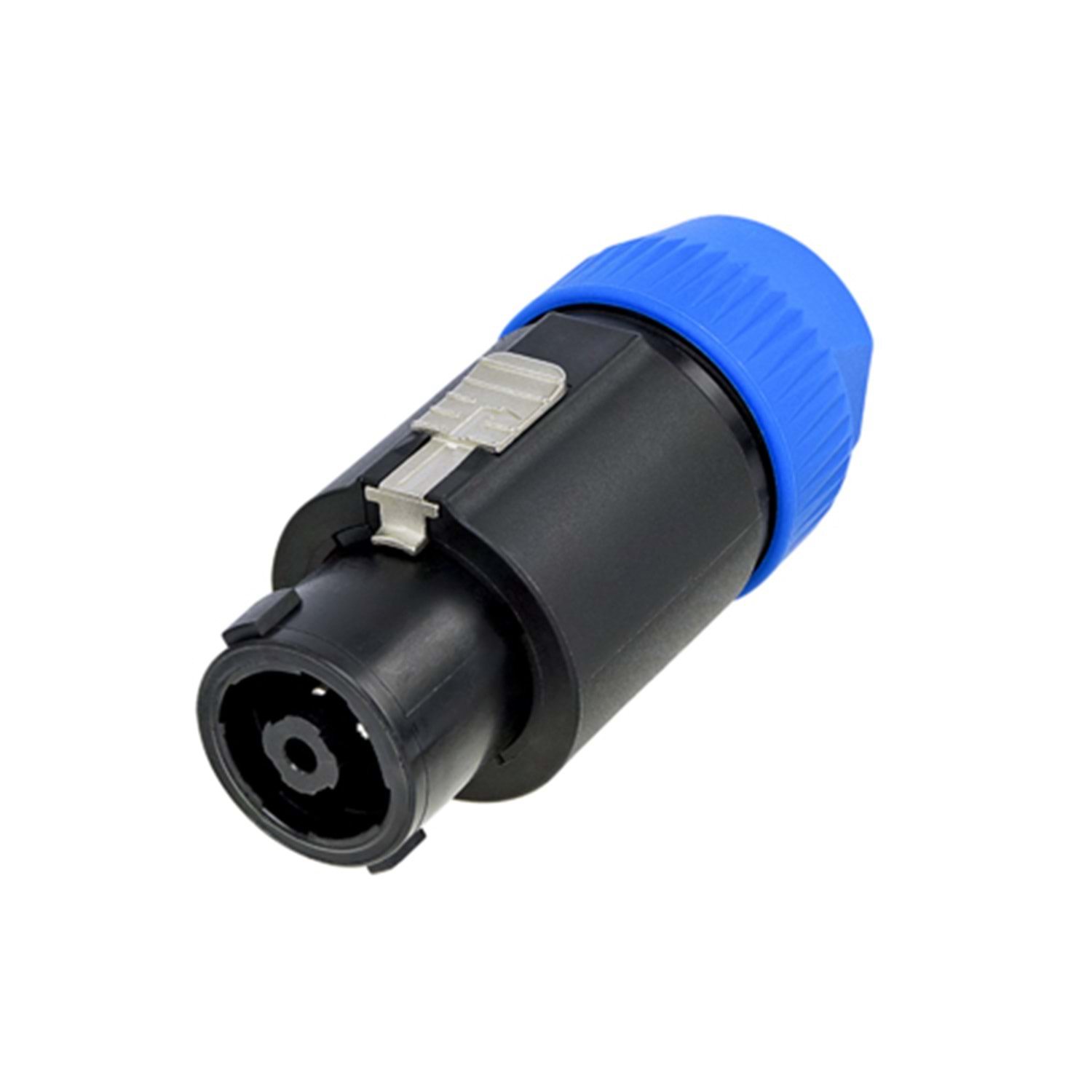

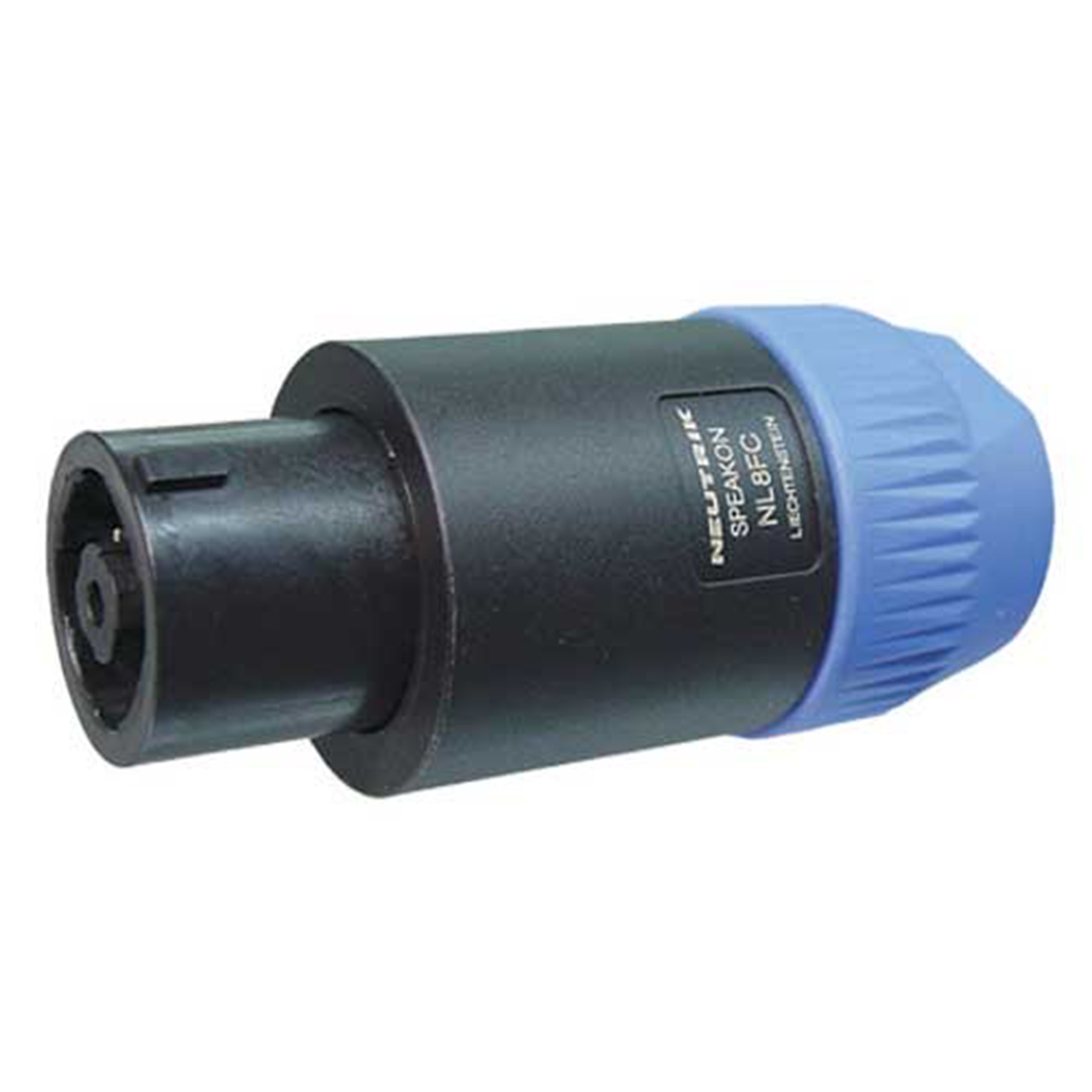

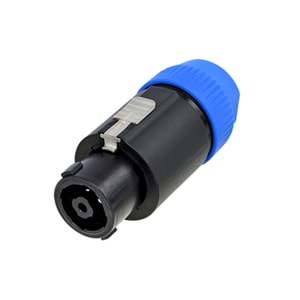

The Neutrik NL8FC is an eight-pole cable connector with latch for secure, soldered terminations of heavy-duty audio cables.

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Features:

• Current rating 30 A rms continuous


• Reliable and robust, easy and fast to assemble


• Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)


• Accurate and dependable twist lock latching system "Quick Lock"


• High impact material for insert and housing, long-lasting and dependable


• Chuck type strain relief system for secure clamping of cable

Technical Information:

• Title: NL8FC


• Connection Type: speakON


• Gender: female


• Contact resistance: = 3 mO (after lifetime)


• Dielectric strength: 4 kVdc (peak)


• Insulation resistance: > 1 GO (after dampheat)


• Rated current per contact: 30 A rms continuous


• Rated current per contact: 40 A audiosignal, duty cycle 50 %


• Rated voltage: 250 V ac


• Attention: speakON is NOT to be used as an AC mains or power supply connector!


• Cable O.D.: 8 - 20 mm


• Cable retention: = 220 N (subject to cable O.D. and material)


• Lifetime: > 5000 mating cycles


• Wiresize: 4 mm²


• Wiresize: 12 AWG


• Wiring: screw type terminals or soldering


• Locking device: Quick Lock (latch)


• Contact plating: 4 µm Ag


• Contacts: Brass (CuZn39Pb3)


• Insert: PBTP 20 % GR


• Locking element: Zinc diecast (ZnAl4Cu1)


• Shell: Polyamide (PA 6 30 % GR)


• Strain relief: Polyacetal (POM)


• Flammability: UL 94 HB


• Solderability: Complies with IEC 68-2-20


• Temperature range: -30 °C to +80 °C

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system.
