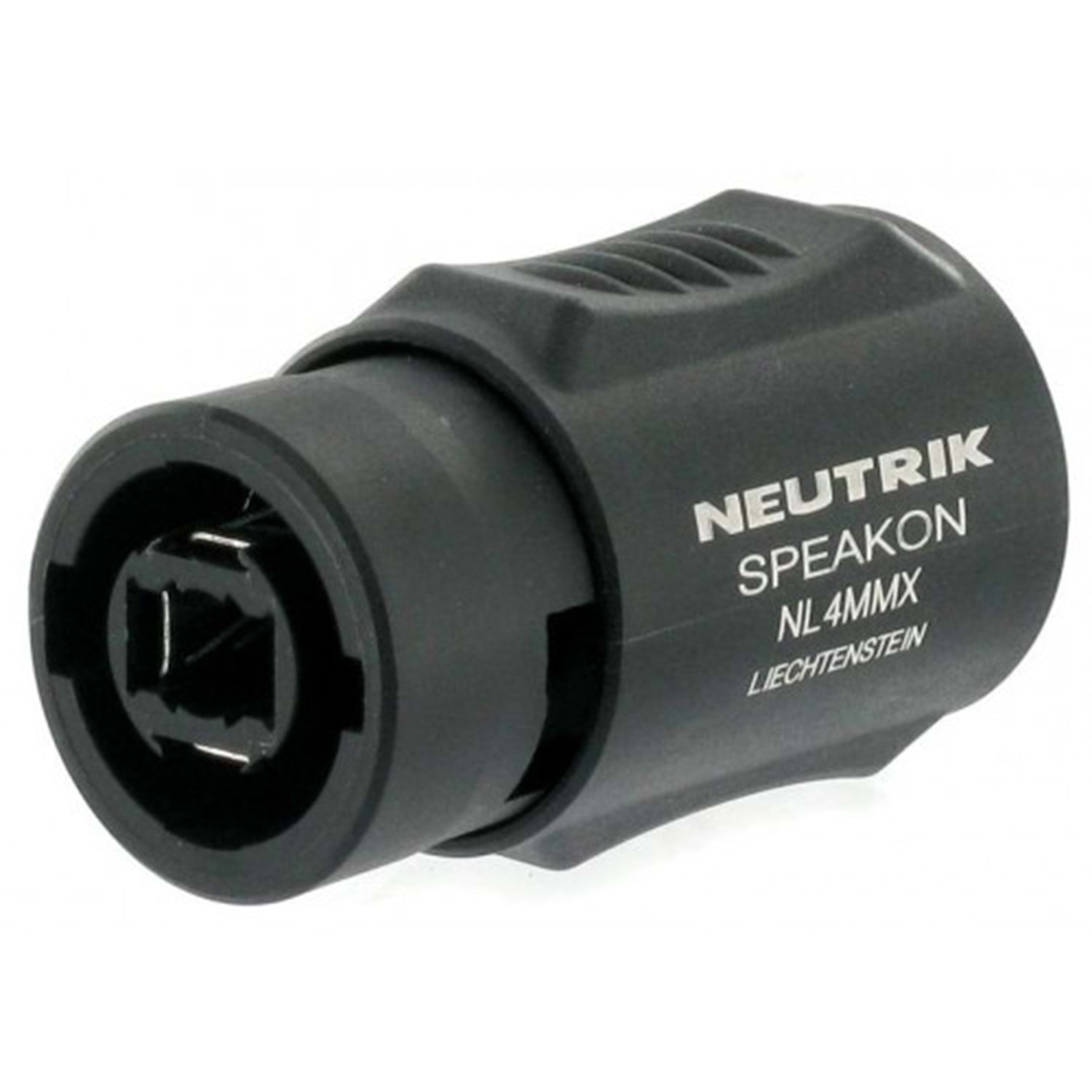

Neutrik NL4MMX - Kablo Tipi SPEAKON Adaptör Fiş (2 Pin)

Lockable 4 pole speakON adapter

Links two NL2/4F*s together for cable extension. Changes gender to male when permanently locked on the cable.

Features permanent secure connection on a speakON cable connector using 2nd lock. Can be permanently attached to NL2/4F*.

Specs :

COUPLER, SPEAKON, 4P
Connector Type: Coupler
Series: -
No. of Contacts: 4
Gender: Plug
Connector Colour: -
Contact Plating: Silver
Connector Body Material: Plastic
SVHC: No SVHC (19-Dec-2012)
Approval Bodies: IEC
Body Diameter: 24mm
Cable Diameter Max: 15mm
Connector Type A: Speakon Socket
Connector Type B: Speakon Socket
Contact Material: Zinc Alloy
Contact Resistance: 3mohm
Convert From Connector: Speakon
Convert From Gender: Plug
Convert From Positions: 4
Convert To Connector: Speakon
Convert To Gender: Plug
Convert To Positions: 4
Current Rating: 30A
External Length / Height: 54mm
Insulation Resistance: 100Mohm
Material: PA6, 30% GR
Operating Temperature Max: 80°C
Operating Temperature Min: -30°C
Panel Cutout Diameter: 24mm
RMS Current Max: 30A
Test Voltage: 4250V
Voltage Rating V AC: 250V
