D-Voice Usb Audiobox Ses Kartı (4507)

USB AUDIO

• • AUDIO BOX
  •
  •

D-VOİCE AUDIOBOX 2 KANAL SES KARTI


Driveri buradan indirebilirsiniz

Product Description

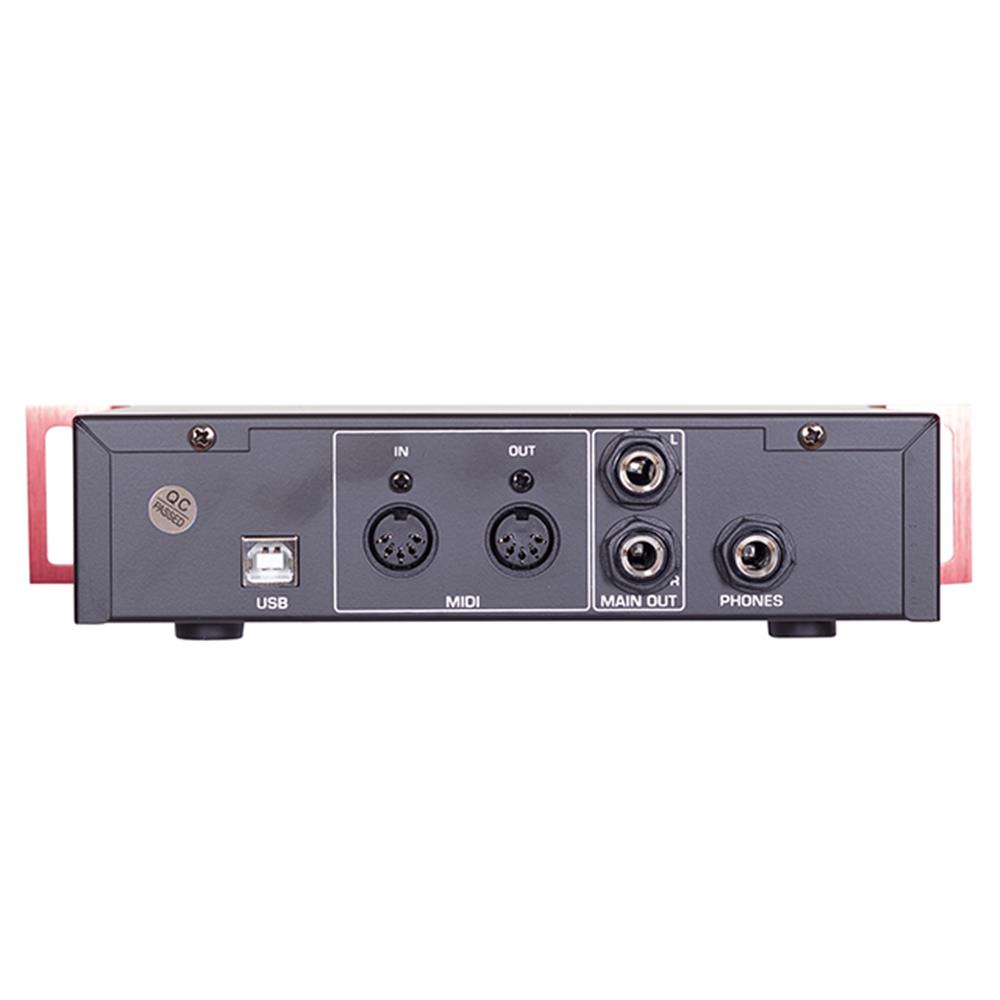

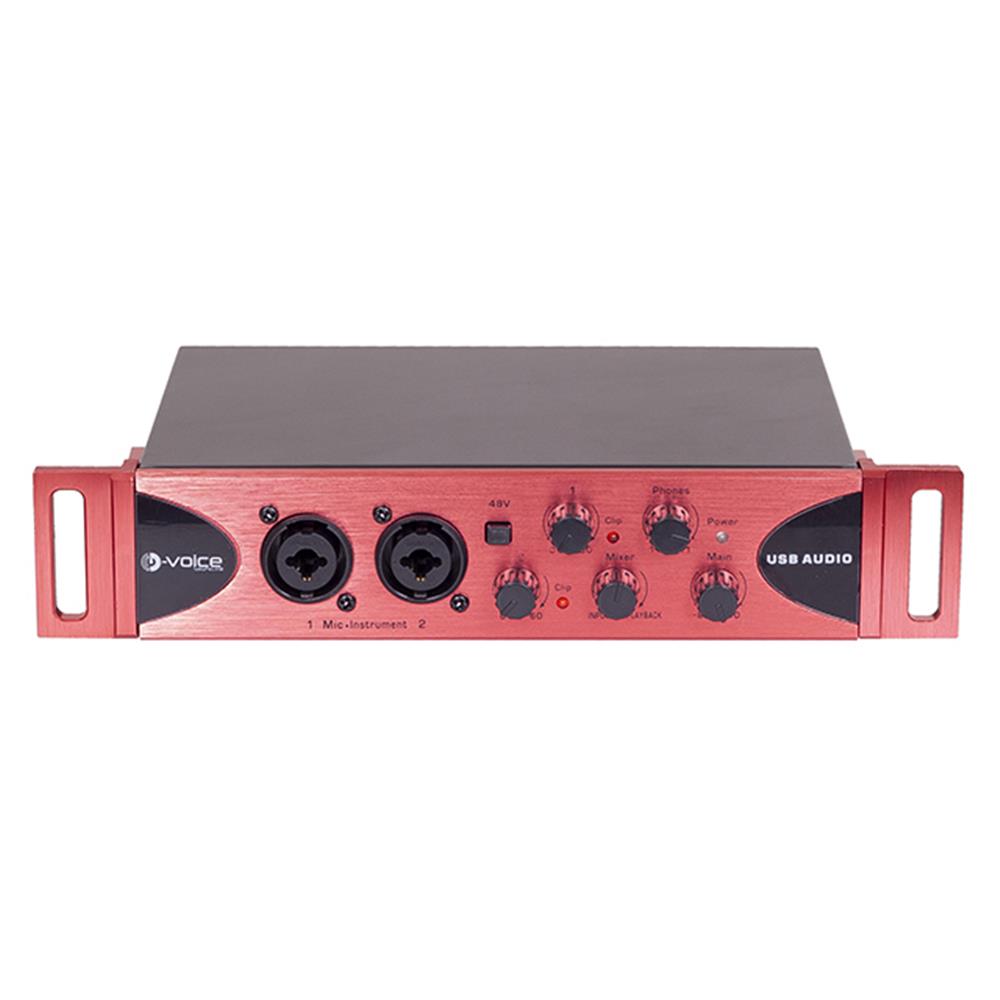

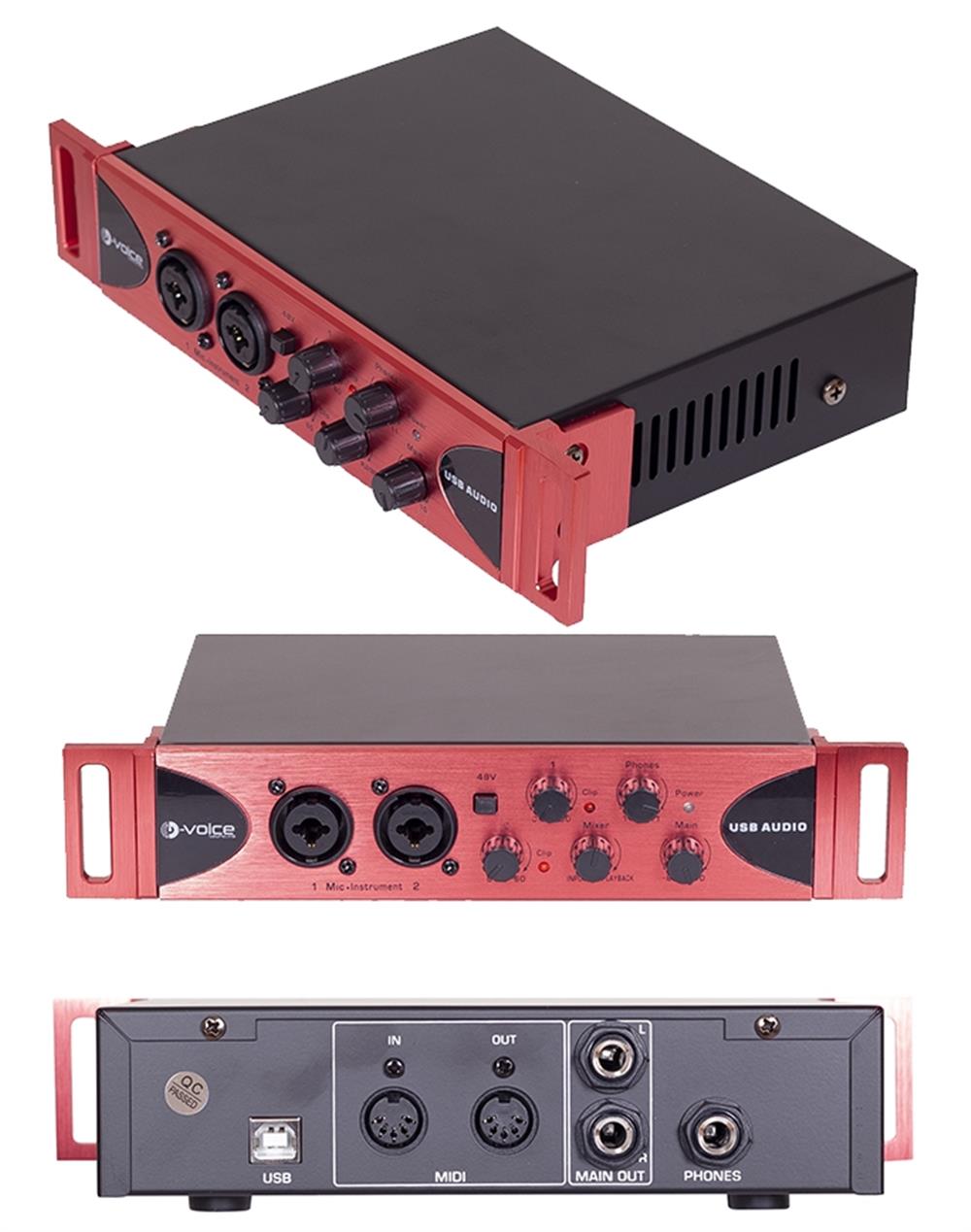

USB BOX 2 XMAX speaker input interface (also supports instrument input standard) Support +48 V condenser microphone power supply function gain Hardware knob adjustment, a signal consumption peak indicator 2 Balanced output interface 1 stereo headphone output interface, headphones Hardware knobs Control volume MIDI input and output interface USB powered, no external power supply 24bit / 48kHz Digital Audio Standard Dynamic Range: Analog - Digital 102dB; Digital - Analog 110dB Compatible with Apple and PC dual systems (including Mac OS X 10.6.8 or higher And Windows) Support for ASIO, Core Audio, Direct Sound (Windows XP), Windows Audio Session API (Windows XP SP3, Vista x64 / x32 SP2, Windows 7 x64 / x32 SP1, Windows 8 x64 / x32).



Product Specification

Model	USB AUDIO BOX
Type	XLR Female Balanced
Frequency Response (3.0 dB)	24bit/48kHz
Input Impedance (Balanced)	1200?
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain)	< 0.008%
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz)	> 95 dB
Common Mode Rejection Ratio (1 kHz, 55 dB Gain)	> 45 dB
Gain Control Range ( 1 dB)	0 dB to 35 dB
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N)	-3 dBu
Phantom Power (2 VDC)	+48 VDC
Instrument Input	Balanced Output Impedance 51?
Headphone Output	Maximum Output 60 mW/Ch @ 60? Load/Frequency Response (1.0 dB) 20 Hz - 30 kHz
MIDI I/O	Type Dual 5-pin Female DIN
Digital Audio	ADC/DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) 102-110 dB/Bit Depth 24/Reference Level for 0 dBFS +4 dBu/Internal Sample Frequency Selections (kHz) 44.1, 48/Power USB Bus-powered
Physical	Dimensions 1/3U (steel chassis)
Dimension (W x D x H)	237 mm x 160 mm x 50 mm
Weight (without packing)	1.0 kg*
